Cembre 2A High Voltage Copper Crimp Lugs

Cembre 2A range of high voltage copper crimp lugs are suitable for 11kV to 33kV cables. The extended cable lug barrel provides excellent connection to stranded copper conductors. The 2A lugs can be installed using Cembre ME hexagonal die sets.

Cembre 2A heavy duty copper tube terminals are made from high purity copper tube and annealed. Cembre 2A cable lugs (11kV-33kV) feature a double length barrel for improved electrical and mechanical performance in high voltage systems. The abscence of an inspection hole prevents the entry of water or moisture into the crimped connection. Water blocked cable lugs are suitable for outdoor crimping applications. Cembre 2A high voltage copper cable lugs are electrolyticaly tin plated to prevent atmospheric corrosion. Cembre 2A2M double stud, 2 hole high voltage cable lugs are available for 11kV-33kV cable terminations.

11kV-33kV Cable Lugs - Cembre 2A Range High Voltage HV Cable Lugs

Cembre 11kV-33kV cable lugs are suitable for terminating high voltage (HV) stranded copper conductors to BS6360 Class 2. Cembre lugs are suitable for terminating and crimping both 11kV-33kV cables indoor and outdoor due to absence of conductor inspection hole. Cembre 2A lugs are crimped using Cembre hydraulic crimping tools (HT51 up to 240sqmm or HT131-C up to 400sqmm). Cembre 2A copper cable lugs are short circuit tested to BS4579 Part 3 for high voltage 11-33kV cable crimping termination.

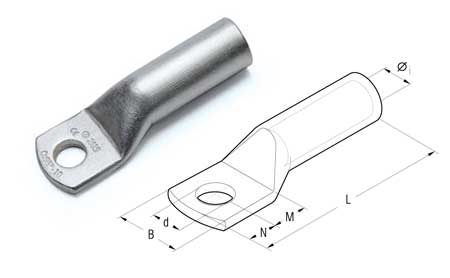

Reference Number	Conductor Size	Ø Stud Size	Dimensions
Reference Number	Conductor Size	Ø Stud Size	Ø i	B	M	N	L	d
Cembre 2A 3-M8	16sqmm	8mm	5.8mm	15mm	9mm	8mm	43.5mm	8.4mm
Cembre 2A 3-M10	16sqmm	10mm	5.8mm	18mm	11mm	10mm	47.5mm	10.5mm
Cembre 2A 5-M8	25sqmm	8mm	7mm	15mm	9mm	8mm	51mm	8.4mm
Cembre 2A 5-M10	25sqmm	10mm	7mm	18mm	11mm	10mm	55mm	10.5mm
Cembre 2A 5-M12	25sqmm	12mm	7mm	21mm	14mm	12mm	60mm	13.2mm
Cembre 2A 7-M8	35sqmm	8mm	8.9mm	17mm	9mm	8mm	53mm	8.4mm
Cembre 2A 7-M10	35sqmm	10mm	8.9mm	19mm	11mm	10mm	57mm	10.5mm
Cembre 2A 7-M12	35sqmm	12mm	8.9mm	21mm	14mm	12mm	62mm	13.2mm
Cembre 2A 10-M10	50sqmm	10mm	10mm	20mm	11mm	10mm	63mm	10.5mm
Cembre 2A 10-M12	50sqmm	12mm	10mm	21mm	14mm	12mm	68mm	13.2mm
Cembre 2A 10-M14	50sqmm	14mm	10mm	25mm	16mm	14mm	72mm	15mm
Cembre 2A 10-M16	50sqmm	16mm	10mm	26mm	18mm	16mm	76mm	17mm
Cembre 2A 14-M10	70sqmm	10mm	11.3mm	21mm	11mm	10mm	70mm	10.5mm
Cembre 2A 14-M12	70sqmm	12mm	11.3mm	22mm	14mm	12mm	75mm	13.2mm
Cembre 2A 14-M14	70sqmm	14mm	11.3mm	25mm	16mm	14mm	79mm	15mm
Cembre 2A 14-M16	70sqmm	16mm	11.3mm	26mm	18mm	16mm	83mm	17mm
Cembre 2A 19-M10	95sqmm	10mm	13.5mm	25mm	11mm	10mm	76.5mm	10.5mm
Cembre 2A 19-M12	95sqmm	12mm	13.5mm	25mm	14mm	12mm	81.5mm	13.2mm
Cembre 2A 19-M14	95sqmm	14mm	13.5mm	25mm	16mm	14mm	85.5mm	15mm
Cembre 2A 19-M16	95sqmm	16mm	13.5mm	27mm	18mm	16mm	90.5mm	17mm
Cembre 2A 19-M20	95sqmm	20mm	13.5mm	29.5mm	22mm	20mm	97.5mm	21mm
Cembre 2A 24-M10	120sqmm	10mm	15.2mm	28.5mm	11mm	10mm	82mm	10.5mm
Cembre 2A 24-M12	120sqmm	12mm	15.2mm	28.5mm	14mm	12mm	87mm	13.2mm
Cembre 2A 24-M14	120sqmm	14mm	15.2mm	28.5mm	16mm	14mm	91mm	15mm
Cembre 2A 24-M16	120sqmm	16mm	15.2mm	28.5mm	18mm	16mm	95mm	17mm
Cembre 2A 24-M20	120sqmm	20mm	15.2mm	30mm	22mm	20mm	103mm	21mm
Cembre 2A 30-M10	150sqmm	10mm	16.7mm	31.5mm	13mm	11mm	92mm	10.5mm
Cembre 2A 30-M12	150sqmm	12mm	16.7mm	31.5mm	16mm	14mm	98mm	13.2mm
Cembre 2A 30-M14	150sqmm	14mm	16.7mm	31.5mm	18mm	16mm	102mm	15mm
Cembre 2A 30-M16	150sqmm	16mm	16.7mm	31.5mm	19mm	17mm	104mm	17mm
Cembre 2A 30-M20	150sqmm	20mm	16.7mm	31.5mm	22mm	20mm	110mm	21mm
Cembre 2A 37-M12	185sqmm	12mm	19.2mm	35.5mm	16mm	14mm	108mm	13.2mm
Cembre 2A 37-M14	185sqmm	14mm	19.2mm	35.5mm	18mm	16mm	112.0	15mm
Cembre 2A 37-M16	185sqmm	16mm	19.2mm	35.5mm	19mm	17mm	114mm	17mm
Cembre 2A 37-M20	185sqmm	20mm	19.2mm	35.5mm	22mm	20mm	120mm	21mm
Cembre 2A 48-M12	240sqmm	12mm	21.1mm	39mm	16mm	14mm	109mm	13.2mm
Cembre 2A 48-M14	240sqmm	14mm	21.1mm	39mm	18mm	16mm	113mm	15mm
Cembre 2A 48-M16	240sqmm	16mm	21.1mm	39mm	19mm	17mm	115mm	17mm
Cembre 2A 48-M20	240sqmm	20mm	21.1mm	39mm	22mm	20mm	121mm	21mm
Cembre 2A 60-M12	300sqmm	12mm	23.7mm	44mm	20mm	14mm	129.5mm	13.2mm
Cembre 2A 60-M14	300sqmm	14mm	23.7mm	44mm	22mm	16mm	133.5mm	15mm
Cembre 2A 60-M16	300sqmm	16mm	23.7mm	44mm	22mm	19mm	136.5mm	17mm
Cembre 2A 60-M20	300sqmm	20mm	23.7mm	44mm	24mm	23mm	142.5mm	21mm
Cembre 2A 80-M12	400sqmm	12mm	27mm	51mm	22mm	19mm	140mm	13.2mm
Cembre 2A 80-M14	400sqmm	14mm	27mm	51mm	22mm	19mm	140mm	15mm
Cembre 2A 80-M16	400sqmm	16mm	27mm	51mm	22mm	19mm	140mm	17mm
Cembre 2A 80-M20	400sqmm	20mm	27mm	51mm	24mm	23mm	146mm	21mm
Cembre 2A 100-M16	500sqmm	16mm	30.3mm	56.5mm	22mm	19mm	147mm	17mm
Cembre 2A 100-M20	500sqmm	20mm	30.3mm	56.5mm	24mm	23mm	153mm	21mm
Cembre 2A 120-M16	630sqmm	16mm	33.4mm	61.5mm	22mm	19mm	159mm	17mm
Cembre 2A 120-M20	630sqmm	20mm	33.4mm	61.5mm	24mm	23mm	165mm	21mm
Cembre 2A 160-M20	800sqmm	20mm	38mm	72mm	24mm	23mm	187mm	21mm
Cembre 2A 200-M20	1000sqmm	20mm	44mm	80mm	24mm	23mm	202mm	21mm
