Cembre 2A5 Cable Crimp Lugs 25sqmm 11-33kV

Cembre High Voltage Copper Cable Lugs

Cembre High Voltage Copper Cable Lugs to 11-33kV

Cembre 2A5 HV Copper Crimp Lugs 25sqmm

Cembre 2A5-M8​

Cembre 2A5-M10

Cembre 2A5-M12



Cembre 2A5 range of high voltage copper crimp lugs are suitable for 25sqmm stranded copper, 11kV to 33kV cables. The extended cable lug barrel provides an excellent crimped connection to stranded copper conductors and is installed using Cembre ME5-C hexagonal die sets.



Cembre 2A5-M Copper Cable Lug Specifications
Reference Number Conductor Size

Ø

Stud Size

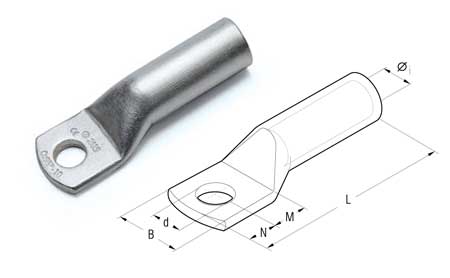

Dimensions
Øi B M N L d
Cembre 2A5-M8 25sqmm 8mm 7mm 15.0mm 9mm 8mm 51mm 8.4mm
Cembre 2A5-M10 25sqmm 10mm 7mm 18.0mm 11mm 10mm 55mm 10.5mm
Cembre 2A5-M12 25sqmm 12mm 7mm 21mm 14mm 12mm 60mm 13.2mm






Cembre 2A5 Cable Crimp Lugs



Recommended Crimping Tool for Cembre 2A5 Lugs Cembre HT131C
