Cembre 2A48 Cable Crimp Lugs 240sqmm 11-33kV

Cembre High Voltage Copper Cable Lugs

Cembre High Voltage Copper Cable Lugs to 11-33kV

Cembre 2A48 HV Copper Crimp Lugs 240sqmm

Cembre 2A48-M12

Cembre 2A48-M14

Cembre 2A48-M16

Cembre 2A48-M20



Cembre 2A48 range of high voltage copper crimp lugs are suitable for 240sqmm stranded copper, 11kV to 33kV cables. The extended cable lug barrel provides an excellent crimped connection to stranded copper conductors and can be installed using Cembre ME48-C hexagonal die sets.



Cembre 2A48-M Copper Cable Lug Specifications

Reference Number Conductor Size

Ø

Stud Size

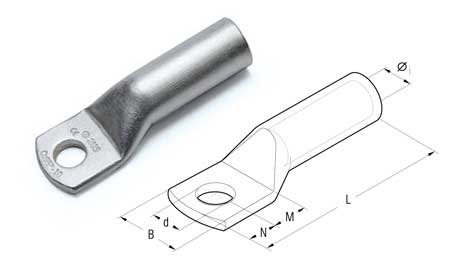

Dimensions
Øi B M N L d
Cembre 2A48-M12 240sqmm 12mm 21.1mm 39mm 16mm 14mm 109mm 13.2mm
Cembre 2A48-M14 240sqmm 14mm 21.1mm 39mm 18mm 16mm 113mm 15mm
Cembre 2A48-M16 240sqmm 16mm 21.1mm 39mm 19mm 17mm 115mm 17mm
Cembre 2A48-M20 240sqmm 20mm 21.1mm 39mm 22mm 20mm 121mm 21mm

Cembre 2A48 Crimp Lugs 240sqmm 11-33kV

Recommended Crimping Tool for Cembre 2A48 Lugs Cembre HT131C
