Cembre 2A160 Cable Crimp Lugs 800sqmm 11-33kV

Cembre High Voltage Copper Cable Lugs

Cembre High Voltage Copper Cable Lugs to 11-33kV

Cembre 2A160 HV Copper Crimp Lugs 800sqmm

Cembre 2A160-M20



Cembre 2A160 range of high voltage copper crimp lugs are suitable for 800sqmm stranded copper, 11kV to 33kV cables. The extended cable lug barrel provides an excellent crimped connection to stranded copper conductors and can be installed using Cembre ME160-520 hexagonal die sets & MA160-520 Nest Dies.



Cembre 2A160-M Copper Cable Lug Specifications
Reference Number Conductor Size

Ø

Stud Size

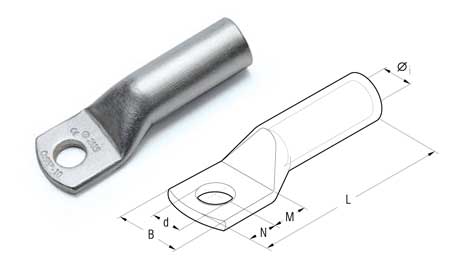

 Dimensions
Øi B M N L d
Cembre 2A160-M20 800sqmm 20mm 38mm 72mm 24mm 23mm 187mm 21mm

Cembre 2A160-M Copper Cable Lugs

Recommended Crimping Tool for Cembre 2A160 Lugs : Cembre RHU 520

Adobe 800sqmm 11-33kV Cable Crimp Lugs - Cembre 2A160
