Cembre 2A14 Cable Crimp Lugs 70sqmm 11-33kV

Cembre High Voltage Copper Cable Lugs to 11-33kV

Cembre 2A14 HV Copper Crimp Lugs 70sqmm

Cembre 2A14-M10

Cembre 2A14-M12

Cembre 2A14-M14

Cembre 2A14-M16



Cembre 2A14 range of high voltage copper crimp lugs are suitable for 70sqmm stranded copper, 11kV to 33kV cables. The extended cable lug barrel provides an excellent crimped connection to stranded copper conductors and can be installed using Cembre ME14-C hexagonal die sets.

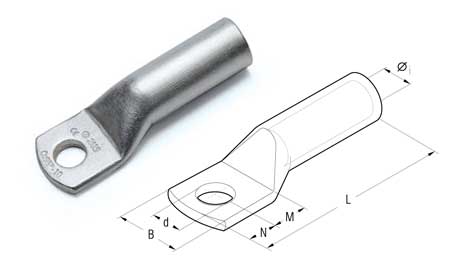

Cembre 2A14-M Copper Cable Lug Specifications

Reference Number	Conductor Size	Ø  Stud Size	Dimensions
			Øi	B	M	N	L	d
Cembre 2A14-M10	70sqmm	10mm	11.3mm	21mm	11mm	10mm	70mm	10.5mm
Cembre 2A14-M12	70sqmm	12mm	11.3mm	22mm	14mm	12mm	75mm	13.2mm
Cembre 2A14-M14	70sqmm	14mm	11.3mm	25mm	16mm	14mm	79mm	15mm
Cembre 2A14-M16	70sqmm	16mm	11.3mm	26mm	18mm	16mm	83mm	17mm



Recommended Crimping Tool for Cembre 2A14 Lugs : Cembre HT131C Crimper

70sqmm 11-33kV Cable Crimp Lugs - Cembre 2A14
