Cembre 2A200 Cable Crimp Lugs 1000sqmm 11-33kV

Cembre High Voltage Copper Cable Lugs

Cembre High Voltage Copper Cable Lugs to 11-33kV

Cembre 2A200 HV Copper Crimp Lugs 1000sqmm

Cembre 2A200-M20



Cembre 2A200 range of high voltage copper crimp lugs are suitable for 1000sqmm stranded copper, 11kV to 33kV cables. The extended cable lug barrel provides an excellent crimped connection to stranded copper conductors and can be installed using Cembre ME200-520 hexagonal die sets & MA200-520 Nest Dies.

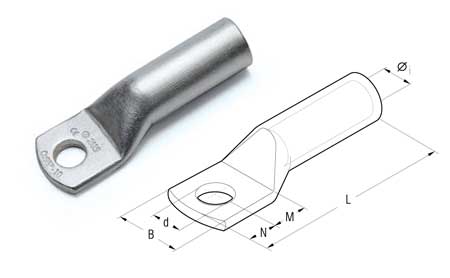

Cembre 2A200-M Copper Cable Lug Specifications

Reference Number Conductor Size

Ø

Stud Size

Dimensions
Øi B M N L d
Cembre 2A200-M20 1000sqmm 20mm 44mm 80mm 24mm 23mm 202mm 21mm

Cembre 2A200 Cable Crimp Lugs 1000sqmm 11-33kV





Recommended Crimping Tool for Cembre 2A200 Lugs : Cembre RHU 520
