Cembre 2A80 Cable Crimp Lugs 400sqmm 11-33kV

Cembre High Voltage Copper Cable Lugs

Cembre High Voltage Copper Cable Lugs to 11-33kV

Cembre 2A80 HV Copper Crimp Lugs 400sqmm

Cembre 2A80-M12

Cembre 2A80-M14

Cembre 2A80-M16

Cembre 2A80-M20



Cembre 2A80 range of high voltage copper crimp lugs are suitable for 400sqmm stranded copper, 11kV to 33kV cables. The extended cable lug barrel provides an excellent crimped connection to stranded copper conductors and can be installed using Cembre ME80-C hexagonal die sets.



Cembre 2A80-M Copper Cable Lug Specifications
Reference Number Conductor Size

Ø

Stud Size

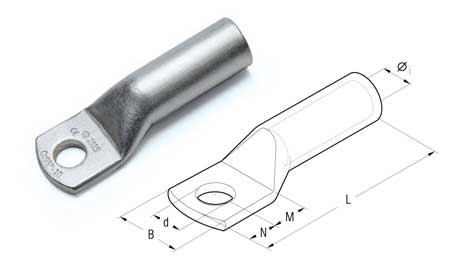

 Dimensions
Øi B M N L d
Cembre 2A80-M12 400sqmm 12mm 27mm 51mm 22mm 19mm 140mm 13.2mm
Cembre 2A80-M14 400sqmm 14mm 27mm 51mm 22mm 19mm 140mm 15mm
Cembre 2A80-M16 400sqmm 16mm 27mm 51mm 22mm 19mm 140mm 17mm
Cembre 2A80-M20 400sqmm 20mm 27mm 51mm 24mm 23mm 146mm 21mm

Cembre 2A80 Crimp Lugs 400sqmm 11-33kV

Recommended Crimping Tool for Cembre 2A80 Lugs : Cembre HT131C

Adobe 400sqmm 11-33kV Cable Crimp Lugs - Cembre 2A80

UK Time - GMT:

Cembre 2A80 Cable Crimp Lugs 400sqmm 11-33kVCembre 2A80-M12 400sqmm Cable Lug 11kV-33kV M12 Hole

Cembre 2A80-M14 400sqmm Cable Lug 11kV-33kV M14 Hole

Cembre 2A80-M16 400sqmm Cable Lug 11kV-33kV M16 Hole

Cembre 2A80-M20 400sqmm Cable Lug 11kV-33kV M20 Hole
