Cembre 2A100 Cable Crimp Lugs 500sqmm 11-33kV

Cembre High Voltage Copper Cable Lugs

Cembre High Voltage Copper Cable Lugs to 11-33kV

Cembre 2A100 HV Copper Crimp Lugs 500sqmm

Cembre 2A100-M16

Cembre 2A100-M20



Cembre 2A100 range of high voltage copper crimp lugs are suitable for 500sqmm stranded copper, 11kV to 33kV cables. The extended cable lug barrel provides an excellent crimped connection to stranded copper conductors and can be installed using Cembre ME100-3D hexagonal die sets & MA100-3D Nest Dies.



Cembre 2A100-M Copper Cable Lug Specifications

Reference Number Conductor Size

Ø

Stud Size

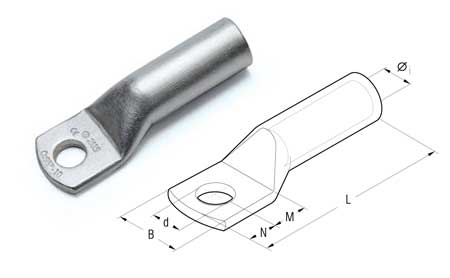

Dimensions
Øi B M N L d
Cembre 2A100-M16 500sqmm 16mm 30.3mm 56.5mm 22mm 19mm 147mm 17mm
Cembre 2A100-M20 500sqmm 20mm 30.3mm 56.5mm 24mm 23mm 153mm 21mm

Cembre 2A100 Crimp Lugs 500sqmm 11-33kV

Recommended Crimping Tool for Cembre 2A100 Lugs : Cembre ECW-H3D
