Cembre 2A7 Cable Crimp Lugs 35sqmm 11-33kV

Cembre High Voltage Copper Cable Lugs

Cembre High Voltage Copper Cable Lugs to 11-33kV

Cembre 2A7 HV Copper Crimp Lugs 35sqmm

Cembre 2A7-M8​

Cembre 2A7-M10

Cembre 2A7-M12



Cembre 2A7 range of high voltage copper crimp lugs are suitable for 35sqmm stranded copper, 11kV to 33kV cables. The extended cable lug barrel provides an excellent crimped connection to stranded copper conductors and can be installed using Cembre ME7-C hexagonal die sets.

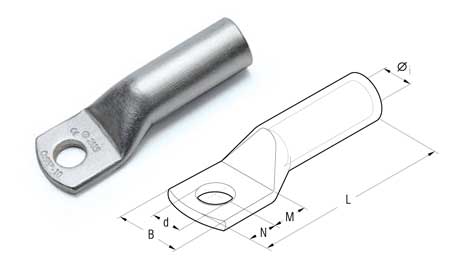

Cembre 2A7-M Copper Cable Lug Specifications
Reference Number Conductor Size

Ø

Stud Size

Dimensions
Øi B M N L d
Cembre 2A7-M8 35sqmm 8mm 8.9mm 17.0mm 9mm 8mm 53mm 8.4mm
Cembre 2A7-M10 35sqmm 10mm 8.9mm 19.0mm 11mm 10mm 57mm 10.5mm
Cembre 2A7-M12 35sqmm 12mm 8.9mm 21mm 14mm 12mm 62mm 13.2mm

Cembre 2A7 Crimp Lugs  35sqmm 11-33kV


Recommended Crimping Tool for Cembre 2A7 Lugs Cembre HT131C
