Cembre 2A120 Cable Crimp Lugs 630sqmm 11-33kV

Cembre High Voltage Copper Cable Lugs

Cembre High Voltage Copper Cable Lugs to 11-33kV

Cembre 2A120 HV Copper Crimp Lugs 630sqmm

Cembre 2A120-M16

Cembre 2A120-M20



Cembre 2A120 range of high voltage copper crimp lugs are suitable for 630sqmm stranded copper, 11kV to 33kV cables. The extended cable lug barrel provides an excellent crimped connection to stranded copper conductors and can be installed using Cembre ME120-3D hexagonal die sets & MA120-3D Nest Dies.

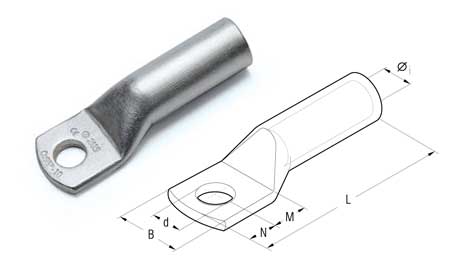

Cembre 2A120-M Copper Cable Lug Specifications

Reference Number Conductor Size

Ø

Stud Size

Dimensions
Øi B M N L d
Cembre 2A120-M16 630sqmm 16mm 33.4mm 61.5mm 22mm 19mm 159mm 17mm
Cembre 2A120-M20 630sqmm 20mm 33.4mm 61.5mm 24mm 23mm 165mm 21mm

Cembre 2A120 Crimp Lugs 630sqmm 11-33kV




Recommended Crimping Tool for Cembre 2A120 Lugs : Cembre ECW-H3D
