Cembre 2A19 Cable Crimp Lugs 95sqmm 11-33kV

Cembre High Voltage Copper Cable Lugs

Cembre High Voltage Copper Cable Lugs to 11-33kV

Cembre 2A19 HV Copper Crimp Lugs 95sqmm

Cembre 2A19-M10

Cembre 2A19-M12

Cembre 2A19-M14

Cembre 2A19-M16

Cembre 2A19-M20



Cembre 2A19 range of high voltage copper crimp lugs are suitable for 95sqmm stranded copper, 11kV to 33kV cables. The extended cable lug barrel provides an excellent crimped connection to stranded copper conductors and can be installed using Cembre ME19-C hexagonal die sets.

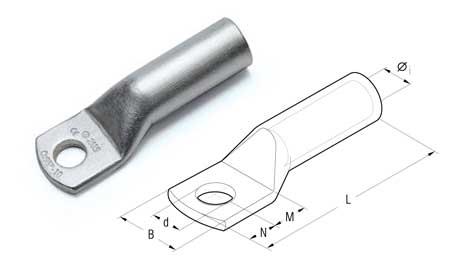

Cembre 2A19-M Copper Cable Lug Specifications

Reference Number Conductor Size

Ø

Stud Size

Dimensions
Øi B M N L d

Cembre

2A19-M10

95sqmm 10mm 13.5mm 25mm 11mm 10mm 76.5mm 10.5mm

Cembre

2A19-M12

95sqmm 12mm 13.5mm 25mm 14mm 12mm 81.5mm 13.2mm

Cembre

2A19-M14

95sqmm 14mm 13.5mm 25mm 16mm 14mm 85.5mm 15mm

Cembre

2A19-M16

95sqmm 16mm 13.5mm 27mm 18mm 16mm 90.5mm 17mm

Cembre

2A19-M20

95sqmm 20mm 13.5mm 29.5mm 22mm 20mm 97.5mm 21mm

Cembre 2A19 Crimp Lugs 95sqmm 11-33kV

Recommended Crimping Tool for Cembre 2A19 Lugs Cembre HT131C
