Cembre 2A10 Cable Crimp Lugs 50sqmm 11-33kV

Cembre High Voltage Copper Cable Lugs

Cembre High Voltage Copper Cable Lugs to 11-33kV

Cembre 2A10 HV Copper Crimp Lugs 50sqmm

Cembre 2A10-M10

Cembre 2A10-M12

Cembre 2A10-M14

Cembre 2A10-M16



Cembre 2A10  range of high voltage copper crimp lugs are suitable for 50sqmm stranded copper, 11kV to 33kV cables. The extended cable lug barrel provides an excellent crimped connection to stranded copper conductors and can be installed using Cembre ME10-C hexagonal die sets.



Cembre 2A10-M Copper Cable Lug Specifications
Reference Number Conductor Size

Ø

Stud Size

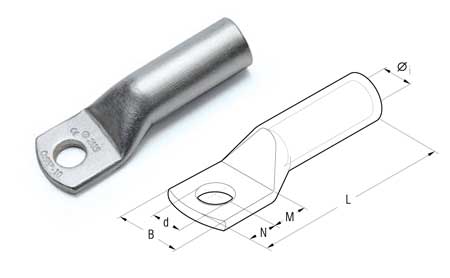

Dimensions
Øi B M N L d
Cembre 2A10-M10 50sqmm 10mm 10mm 20mm 11mm 10mm 63mm 10.5mm
Cembre 2A10-M12 50sqmm 12mm 10mm 21mm 14mm 12mm 68mm 13.2mm
Cembre 2A10-M14 50sqmm 14mm 10mm 25mm 16mm 14mm 72mm 15mm
Cembre 2A10-M16 50sqmm 16mm 10mm 26mm 18mm 16mm 76mm 17mm

Cembre 2A10 Crimp Lugs 50sqmm 11-33kV


Recommended Crimping Tool for Cembre 2A10 Lugs Cembre HT131C
