Cembre 2A3 Cable Crimp Lugs 16sqmm 11-33kV

Cembre High Voltage Copper Cable Lugs

Cembre High Voltage Copper Cable Lugs to 11-33kV

Cembre 2A3 HV Copper Crimp Lugs

Cembre 2A3-M8

Cembre 2A3-M10



Cembre 2A3 range of high voltage copper crimp lugs are suitable for 16sqmm stranded copper, 11kV to 33kV cables. The extended cable lug barrel provides an excellent crimped connection to stranded copper conductors and is installed using Cembre ME3-C hexagonal die sets.

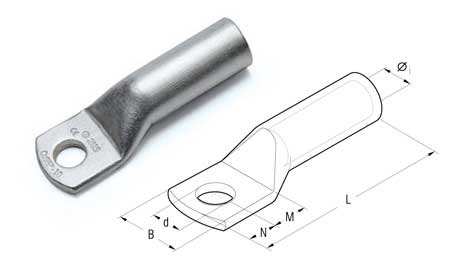

Cembre 2A3-M Copper Cable Lug Specifications
Reference Number Conductor Size

Ø

Stud Size

Dimensions
Øi B M N L d
Cembre 2A3-M8 16sqmm 8mm  5.8mm 15.0mm 9mm 8mm 43.5mm 8.4mm
Cembre 2A3-M10 16sqmm 10mm 5.8mm 18.0mm 11mm 10mm 47.5mm 10.5mm



Recommended Crimping Tool for Cembre 2A3 Lugs : Cembre HT131C Crimper

Cembre 2A3 Cable Crimp Lug

Cembre 2A3 Cable Lugs CE Aprroved
