Cembre 2A24 Cable Crimp Lugs 120sqmm 11-33kV

Cembre High Voltage Copper Cable Lugs

Cembre High Voltage Copper Cable Lugs to 11-33kV

Cembre 2A24 HV Copper Crimp Lugs 120sqmm

Cembre 2A24-M10

Cembre 2A24-M12

Cembre 2A24-M14

Cembre 2A24-M16

Cembre 2A24-M20



Cembre 2A24 range of high voltage copper crimp lugs are suitable for 120sqmm stranded copper, 11kV to 33kV cables. The extended cable lug barrel provides an excellent crimped connection to stranded copper conductors and can be installed using Cembre ME24-C hexagonal die sets.



Cembre 2A24-M Copper Cable Lug Specifications

Reference Number Conductor Size

Ø

Stud Size

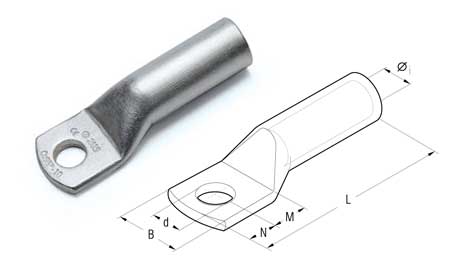

Dimensions
Øi B M N L d

Cembre

2A24-M10

120sqmm 10mm 15.2mm 28.5mm 11mm 10mm 82mm 10.5mm

Cembre

2A24-M12

120sqmm 12mm 15.2mm 28.5mm 14mm 12mm 87mm 13.2mm

Cembre

2A24-M14

120sqmm 14mm 15.2mm 28.5mm 16mm 14mm 91mm 15mm

Cembre

2A24-M16

120sqmm 16mm 15.2mm 28.5mm 18mm 16mm 95mm 17mm

Cembre

2A24-M20

120sqmm 20mm 15.2mm 30mm 22mm 20mm 103mm 21mm


Cembre 2A24 Crimp Lugs 120sqmm 11-33kV

Recommended Crimping Tool for Cembre 2A24 Lugs Cembre HT131C
