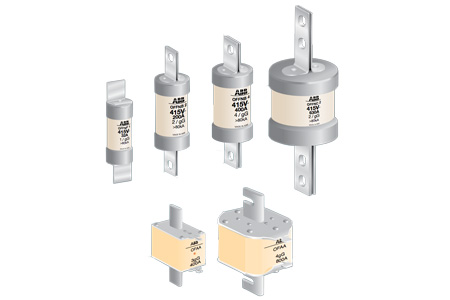

ABB OF Fuse Links for Low Voltage Short Circuit Protection

To prevent danger, and damage to low voltage electrical equipment and circuits, short circuit currents need to be interrupted extremely quickly.

The quick temperature rise generated by the short circuit current causes equipment to breakdown.

ABB OF fuse links are designed to react to temperature rise and their current limiting capability is very good.

Fuse links contain granulated quartz which binds the temperature generated by the arc in the short circuit. At the same time the pressure rises inside the ABB low voltage fuse link and the fusing element ruptures.

• gG - fuse links for overload and short circuit protection

IEC sizes: 000, 00, 0, 1, 2, 3 and 4
2...1250 A, 500 V
2...1000 A, 690 V



• aM - fuse links for short circuit protection in motor circuits

IEC sizes: 000, 00, 0, 1, 2, 3 and 4
2...1250 A, 500 V
2...800 A, 690 V


ABB OF Fuse Links - Fuse Protection Features

• Total safety for your cables, motors and electronics protection
• Wide current ratings for optimal dimensioning of other circuit components
• Low let through energy, low cut off characteristics, reduced electro magnetic stress
• Energy saving through low power losses
• High breaking capacity 80 kA at 415 V (AC)
• Fault indication on the top of the fuse link for DIN fuses
• Conforms to standard IEC 60269
