ABB TJP Medium Voltage MV Indoor Voltage Transformers

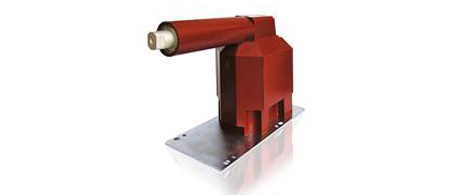

ABB TJP voltage transformer is a single phase voltage transformer which is intended to have one end of its primary winding directly earthed.  ABB TJP transformer is equipped with fuse connected to primary winding.

ABB TJP MV Medium Voltage Transformer Features

• Indoor dry type, cast resin insulated
• With or without fuses
• Reconnectable versions available
• For measuring and protection with up to 3 secondary windings
• Most electrical standards available (IEC, GOST, AS, BS, ANSI, VDE, CSN, others on request)
• DIN dimensions according to 42600 part 9
• Various fuses from 300 mA to 6.3 A
• Various high voltage terminals available (spring, cable connection,..)
• Available variant with extended parameters for voltages 3.6 - 17.5 kV (TJPH
• Optional transparent secondary terminal cover
• Suitable for tariff metering
• Sealable secondary terminal



ABB TJP Single Phase Voltage Transformer Ratings

Highest Voltage For Equipment	3.6kV - 40.5kV
Primary Voltage	3 000 /√3 - 35 000 /√3 V
Secondary Voltage	100 /√3 - 120 /√3, 100 /3-120 /3 V
Frequency	50Hz or 60Hz
