LV4 – Polymeric Services to PILCSTA Cable Jointing Course

Sterling Power training centre is now closed - for up to date information see Cable Jointer Training Courses.

For further reading click here - Cable Joint Training

Duration: Two days

Venue: Sterling Power Training, Halesowen

Membership: This cable jointing training course is designed as a continuation course following an LV1 (Introduction to LV Cable Jointing - Single & Three Phase Services) or for existing experienced cable jointer that has undertaken, or is in the process of undertaking, a suitable electrical qualification i.e. C&G 2322.

It is recommended that trainee cable jointers should have at least a basic understanding of numeracy and literacy to successfully complete the course.

Maximum number of delegates: Seven trainee jointers per course

Training Course Objectives: By the end of the jointer training course you should be able to:

• Understand and demonstrate personal safety including the basics of on-site safety requirements including use of hand tools
• Demonstrate cable stripping and preparation of PILCSTA cables
• Demonstrate they can complete a single phase service on to three phase PILCSTA mains

T&D, the Specialist Distributor of LV-HV Jointing Equipment & Tools are proud supporters and business partners of Sterling Power Group, the UK's leading provider of Cable Jointer Training Courses.



Jointer Training Course Outline

The following course content will be covered two days of theory and practical training.

Day 1

• Personal safety including the basics of on-site safety requirements and hand tools.
• Introduction to cable preparation and stripping of PILCSTA cables

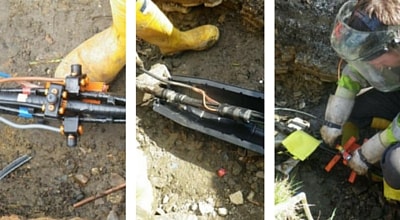

• Carry out single phase service joint to PILCSTA including jointing instructions and procedures

Day 2

• Continue with single phase PILCSTA service cable joint
• Course assessments and review



Cable Jointing Material List

Each trainee cable jointer will be required to bring the following jointing kits and cable:



Jointing Kits & Other Materials

185sqmm PILCSTA Mains Service Joint



Cable Requirements:

3m of 185sqmm PILCSTA 4 core cable

2m of 25sqmm HCN service cable
