Jointer Training Course : HV5 33kV Single Core Polymeric XLPE Cable Jointing

By Chris Dodds on 20th April, 2016

Follow @ThorneanDerrick

HV5 33kV Single Core Polymeric XLPE Cable Jointing Course

Sterling Power training centre is now closed - for up to date information see Cable Jointer Training Courses.

For further reading click here - Cable Joint Training

Duration - Two days

Venue - Sterling Power Training, Halesowen

Membership - This 33kV cable jointing training course is designed for existing HV jointers that are experienced in handling and stripping XLPE cables at 11kV.

It is recommended that trainee 33kV cable jointers should have at least a basic understanding of numeracy and literacy to successfully complete the course.

Maximum number of delegates - Six trainee 33kV jointers per course.

Training Course Objectives - By the end of this course you should be able to:

• Understand and demonstrate personal safety including the basics of on site safety requirements, hand tools, resins and personal hygiene
• Identify a 33kV polymeric cable
• Demonstrate 33kV sheath removal, screen stripping, insulation and earth wire preparation and presenting smooth cores ready for cable jointing

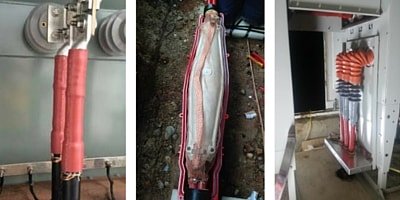

• Demonstrate they can carry out a 33kV 150sqmm Single Core Cable Box/Pole Termination
• Demonstrate they can carry out a 33kV 150sqmm Single Core Cable Straight Joint

T&D, the Specialist Distributor of LV-HV Jointing Equipment & Tools are proud supporters and business partners of Sterling Power Group, the UK's leading provider of Cable Jointer Training Courses.



33kV Jointer Training Course Outline

Day 1

• Introduction to 33kV Polymeric Cable
• Preparation of 33kV Polymeric Cables for Cable End Termination
• Prepare 33kV 150sqmm Single Core Cable for Cable Box/Pole Termination
• Complete 33kV 150sqmm Single Core Cable for Cable Box/Pole Termination

Day 2

• Prepare 33kV 150sqmm Single Core Cable for Straight Joint
• Complete 33kV 150sqmm Single Core Cable for Straight Joint
• Course Appraisal



HV Cable Jointing Materials List

Each delegate will be required to bring the following jointing kits and cable:



HV Jointing Kits and other Materials

• 1 x Tyco 33kV single phase 150sqmm Straight Joint Kit
• 1 x Tyco 33kV single phase 150sqmm Cable End Termination Kit



HV Cable Requirements

• 3m x 33kV Single Phase 150sqmm XLPE cable

Please note that high voltage cable joints have considerable lead times - call T&D.



Further HV Cable Jointer Courses :

• Jointer Training Course : LV1 Introduction to LV Cable Jointing – Single & Three Phase Services
• Jointer Training Course : LV2 LV Polymeric (Wavecon) Main Cable Three Phase Jointing Course
• Jointer Training Course : LV3 LV Transition Polymeric (Wavecon) to PILCSTA Main Cable – Three Phase
• Jointer Training Course : LV4 Polymeric Services to PILSTA Cable Jointing Course
• Jointer Training Course : HV1 HV and LV Cable Terminations Conversion Course
• Jointer Training Course : HV3 Polymeric XLPE and/or EPR up to 11kV
• Jointer Training Course : HV4 11kV Polymeric to Paper Insulated Lead Covered Steel Wire Armoured Cab
• Jointer Training Course : HV6 LoviSil Silicone Filled Single Core XLPE - EPR Straight Joint
