LV3 LV Transition Polymeric (Wavecon) to PILCSTA Main Cable – Three Phase Jointing Course

Sterling Power training centre is now closed - for up to date information see Cable Jointer Training Courses.

For further reading click here - Cable Joint Training

Duration: Five days

Venue: Sterling Power Training, Halesowen

Membership: This cable jointing course is designed for existing cable jointers who have experience of jointing an/or have completed Sterling Power Training’s LV2 course or is in the process of taking a suitable electrical qualification i.e. C&G2322 or equivalent

It is recommended that trainee cable jointers should have at least a basic understanding of numeracy and literacy to successfully complete the course.

Maximum number of delegates: Seven trainee jointers per course

Training Course Objectives: By the end of the jointer training course you should be able to:

• Understand and demonstrate personal safety including the basics of on site safety requirements, hand tools, cable jointing resins and personal hygiene
• Evaluate electrical test results and demonstrate the use of instruments

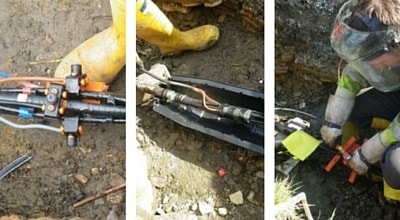

• Demonstrate they can complete a transition mains straight joint – Wavecon cable to PILCSTA three phase cable
• Demonstrate they can complete transition mains breeches joint – Wavecon cable to PILCSTA three phase cable
• Demonstrate they can complete mains pot end PILCSTA mains cable three phase and single phase service connection
• Demonstrate they can complete a PILCSTA mains service breeches joint
