Jointer Training Course : HV3 Polymeric XLPE and/or EPR Cable up to 11kV

HV3 Polymeric XLPE and/or EPR Cable up to 11kV

Sterling Power training centre is now closed - for up to date information see Cable Jointer Training Courses.

For further reading click here - Cable Joint Training

Duration - Five days

Venue - Sterling Power Training, Halesowen

Membership - This HV cable jointing training course is designed for existing crafts persons who have previous cable jointing experience at low voltage.

It is recommended that trainee cable jointers should have at least a basic understanding of numeracy and literacy to successfully complete the course.

Maximum number of delegates - Seven trainee cable jointers per course.

Training Course Objectives - By the end of this course delegates should be able to:

  • Understand and demonstrate personal safety including the basics of on site safety requirements, hand tools and personal hygiene
  • Identify an HV polymeric cable
  • Explain and understand which safety documents HV jointers need to understand
  • Demonstrate they can use cable spiking tools and core identification
  • Demonstrate HV sheath removal, screen stripping, insulation and earth wire preparation and presenting smooth cores ready for cable jointing
  • Demonstrate they can complete an HV straight joint using heat shrink methodology
  • Demonstrate they can complete a 185sqmm HV single core polymeric pot end
  • Demonstrate they can complete a 185sqmm HV Triplex pole or cable box termination
  • Demonstrate they can complete a 185sqmm HV single core trifurcating joint
  • Demonstrate they can complete a Triplex 185sqmm to 3 core HV breeches joint

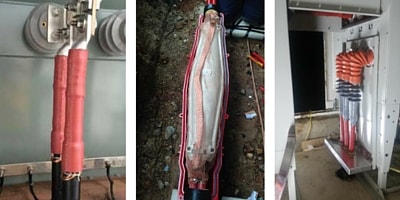

HV Cable Jointing

T&D, the Specialist Distributor of LV-HV Jointing Equipment & Tools are proud supporters and business partners of Sterling Power Group, the UK's leading provider of Cable Jointer Training Courses.

Cable Jointing Training Courses 11kV 33kV



HV Jointer Training Course Outline

Day 1

  • Introduction to HV polymeric cables
  • Preparation of HV polymeric cables for cable jointing

Day 2

  • Preparation of 185sqmm single core 11kV straight joint
  • Completion of 185sqmm single core 11kV straight joint
  • Carry out 185sqmm single core 11kV polymeric pot end
  • Preparation for 185sqmm single core 11kV breech joint

Day 3

  • Completion of 185sqmm single core 11kV breech joint
  • Carry out 185sqmm single core 11kV pole termination
  • Preparation for 185sqmm Triplex to three core 11kV trifurcating joint

Day 4

  • Completion of 185sqmm single core 11kV trifurcating joint
  • Preparation for 185sqmm Triplex to three core 11kV breeches joint

Day 5

  • Completion of 185sqmm three core 11kV breeches joint
  • Course appraisal



HV Cable Jointing Materials List

Each delegate will be required to bring the following jointing kits and cable:



HV Jointing Kits & Other Materials

  • 185sqmm single core polymeric straight joint kit (Tyco MXSU-3131)
  • 185sqmm single core pot end kit (Tyco SMOE 63407)
  • Pole termination with lugs and rain sheds (Tyco OXSU-F3131-GB01)
  • 185sqmm single core polymeric to 3 core polymeric breeches joint kit (Tyco SMOE 63745 & 2 x Tyco SMOE 63199 Poly prep kits)
  • Single core polymeric to 3 core polymeric trifurcating joint (Tyco SMOE 63741)



HV Cable Requirements

  • 4m x 11kV 185sqmm 3 core polymeric bonded screen copper wire shield
  • 12m x 185 single core (3 phases) polymeric (XXX)

Please note that high voltage cable joints have considerable lead times - call T&D.
