ABB AZ HV High Voltage Surge Arresters For SF6 GIS Gas Insulated Switchgear

By Chris Dodds on 9th January, 2013

Follow @ThorneanDerrick

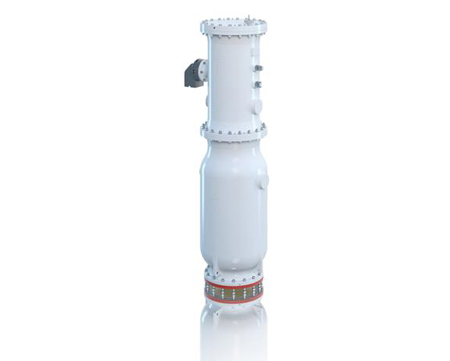

ABB AZ Gas-Insulated Surge Arresters

Surge Arresters For Gas-Insulated Switchgear For System Voltage Up To 550kV



The ABB AZ high voltage HV surge arrster is made for the protection of GIS switchgear (SF6 gas insulated switchgear) against both multiple atmospheric and switching overvoltages. ABB AZ surge arresters are also suitable for protection of high voltage transformers. ABB surge arresters are designed for both indoor and outdoor installation. These surge arresters are designed and type-tested according to IEC 62271-203 and IEC 60099-4.



ABB AZ Gas-Insulated Surge Arrester Technical Data

Product No.	Image	System Voltage Us	Continuous Voltage Uc	Nominal Discharge Current In	High Current Impulse	Phases Per Enclosure	IEC Line Discharge Class
ABB AZ041		≤ 170kV	≤ 154kV	10kA / 20kA	100kA	3	3/4
ABB AZY14		≤ 245kV	≤ 174kV	10kA / 20kA	100kA	3	3/4
ABB AZ14		≤ 245kV	≤ 174kV	10kA / 20kA	100kA	1	3/4
ABB AZ14		≤ 300kV	≤ 202kV	10kA / 20kA	100kA	1	3/4
ABB AZ32M		≤ 420kV	≤ 317kV	20kA	100kA	1	5
ABB AZ32G		≤ 420kV	≤ 317kV	20kA	100kA	1	5
ABB AZ32A		≤ 550kV	≤ 374kV	20kA	100kA	1	5



ABB Power Products provide utility, industrial and commercial customers with safe, reliable and smart technologies for the distribution of low voltage LV, medium voltage MV and high voltage HV electricity. ABB Power Products support vital electrical circuits at 3.3kV, 6.6kV, 7.2kV, 11kV, 15kV, 20kV, 25kV, 33kV, 36kV up to 50kV.
