ABB CMF IEC High Voltage HV Indoor Motor Fuses

By Chris Dodds on 15th January, 2013

Follow @ThorneanDerrick

ABB Medium Voltage MV Fuses

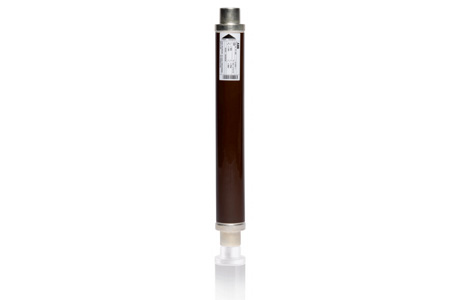

ABB CMF Motor Fuses - IEC Standard 3.6kV-12kV



ABB high voltage fuse links type CMF are specially designed for motor circuit applications. ABB CMF fuses are tested according to the IEC Publication 60282-1 (IEC 282-1) and Publication 60644 (IEC 644). IEC 60644 applies to fuse links used with high voltage motors that are started direct-on-line in alternating current systems.

High voltage fuses used in motor circuits must be able to withstand, without deterioration, the repeated surges associated with motor starting.

ABB high voltage fuses dimensions are in accordance with DIN 43625 and IEC 60282-1. Although a motor fuse is normally run at a stationary current, which is much lower than the fuse rated current, the low-loss characteristics of the ABB CMF high voltage fuses make them especially suitable in compact contactor compartments.

ABB CMF Motor Circuit Fuses Features

• Specially designed for motor circuit protection
• Tested according to IEC 60644 which guarantees excellent ability to withstand repeated motor starting conditions
• High current rating within single body dimensions
• Low minimum breaking current
• Low power losses, specially suitable in compact contactor compartments
• High breaking capacity
• Available with BS tags
• High current limitation
• Versions CMF-TCU equipped with Temperature Control Unit, which protects against high temperature in enclosed compartments
• Equipped with medium type striker, which is activated immediately when the fuse-elements melt



ABB CMF Motor Circuit Fuse Specifications

Rated Voltage	Rated Current	Fuse Length	Fuse Dia	K-factor Acc  To IEC 60644	Max Tested Breaking Current	Min Breaking Current	Fuse Resis-tance At 20°C	Power Loss At Rated Current
3.6kV	100A	292mm	65mm	0.75	50kA	275A	3.20mΩ	49W
3.6kV	160A	292mm	65mm	0.7	50kA	400A	1.92mΩ	75W
3.6kV	200A	292mm	87mm	0.7	50kA	500A	1.40mΩ	75W
3.6kV	250A	292mm	87mm	0.6	50kA	760A	0.97mΩ	90W
3.6kV	315RC 280A	292mm	87mm	0.6	50kA	900A	0.81mΩ	122W
7.2kV	63A	442mm	65mm	0.75	50kA	175A	8.50mΩ	45W
7.2kV	100A	442mm	65mm	0.75	50kA	275A	4.86mΩ	67W
7.2kV	160A	442mm	65mm	0.7	50kA	400A	2.92mΩ	119W
7.2kV	200A	442mm	87mm	0.7	50kA	500A	2.12mΩ	118W
7.2kV	250A	442mm	87mm	0.6	50kA	800A	1.48mΩ	142W
7.2kV	315RC 280A	442mm	87mm	0.6	50kA	950A	1.23mΩ	193W
12kV	63A	442mm	65mm	0.75	50kA	190	13.52mΩ	77W
12kV	100A	442mm	87mm	0.75	50kA	275	6.62mΩ	103W
12kV	160A	442mm	87mm	0.7	50kA	480	3.98mΩ	155W
12kV	200A	442mm	87mm	0.7	50kA	560	2.73mΩ	173W
