ABB Hazardous Area Ex ATEX Critical & Safe Industrial Plugs & Sockets - 16amp

By Chris Dodds on 8th January, 2013

Follow @ThorneanDerrick

ABB 16Amp EX ATEX Plugs & Sockets - Hazardous Area Plugs

(Zone 22, Category 3) ATEX Certified For Dust Explosive Atmospheres

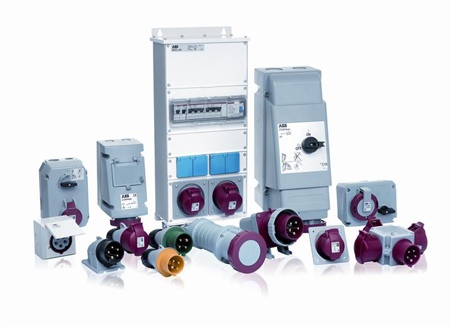

ABB industrial plugs and sockets are a part of the comprehensive ABB program of high quality low voltages products for industries, buildings and OEM´s.

ABB Critical & Safe range of plugs and sockets are used for applications with high demands on safety, durability and performance.

These plugs and sockets are ideal for applications with frequent connection/disconnection, and to use in public areas.

The housing on the Critical & Safe range are made of PBT or aluminum. PBT is a tough plastic material that withstands heavy-duty usage and most chemicals found in industrial environments.

The aluminum housing is a mix of aluminium and silicon called silumin, which gives an excellent protection against corrosion whil

ABB Critical & Safe Industrial Plugs & Sockets Features

• IP67 Watertight or IP44 Splashproof
• 16-125 A, 50-690 VAC
• IEC 60 309-2, -4
• All external screws are made of stainless steel

Application examples for the Critical & Safe range are:- Heavy/chemical industry, Sawmills, Airports and Hospitals.

ABB Critical & Safe Range Of Industrial Socket Outlets - 16A

Product Type	Description	Image
ABB Heavy Duty Switched Interlocked Socket Outlets	16 A, IP67 Watertight Plastic enclosure (PBT) Cable entry with knock-outs Ø 25+32mm on top and drill marks on bottom Cable area 1.5-4 mm²
ABB Metal Enclosed Switched Interlocked Socket Outlets	16 A, IP44 Splashproof Aluminum enclosure Cable entry 2xM25+2xM32 Cable area 1.5-4 mm²
ABB Horizontal Switched Interlocked Socket Outlets	16 A, IP44 Splashproof / IP67 Watertight Plastic enclosure (PBT) Cable entry with knock-outs Ø 25 mm/M25 Cable area 1.5-4 mm²
ABB Vertical Switched Interlocked Socket Outlets	16 A, IP44 Splashproof /  IP67 Watertight Plastic enclosure (PBT) Cable entry with knock-outs Ø 25mm Cable area 1.5-4 mm²
ABB Switched Interlocked Socket Outlets With Protection	16 A, IP44 Splashproof / IP67 Watertight Plastic enclosure (PBT) Cable entry with knock-outs 2xØ 25mm Cable area 1.5 - 10 mm²
ABB Surface Socket Outlets With Protection	16 A, IP44 Splashproof / IP67 Watertight Plastic enclosure (PBT) Cable entry with knock-outs 2xØ 25 mm Cable area 1.5-10 mm²



ATEX Certified Electrical Equipment for Hazardous Areas

ATEX is the name given to a set of European Directives relating to Hazardous Area Electrical Equipment Installations (Flammable Atmospheres) to avoid industrial accident or incident. ATEX Directive 94/9/EC (ATEX 95), is a directive adopted by the EU under the “New Approach” strategy.


• Further reading

Switchgear Temperature Monitoring - Hot-Spot Detection Enabling Condition-Based Maintenance

ABB CMF High Voltage Motor Fuses -7.2kV Rated Voltage 100A/200A

ABB MWK High Voltage Surge Arresters AC 4-44kV

T&D are Specialist Distributors for ABB Power Products.

With the technical, commercial and engineering support of ABB Power Products divisions T&D can deliver Fuses, Transformers, Surge Arresters, Vacuum Contactors and Capacitors for the protection and distribution of medium voltage electricity and cable systems.

LV Low Voltage Capacitors	MV HV Medium - High Voltage Current Transformers
LV Low Voltage Surge Arresters	MV HV Medium - High Voltage Variable Transformers
MV HV Medium - High Voltage Fuses (Indoor)	MV HV Medium - High Voltage Surge Arresters
MV HV Medium - High Voltage Fuses (Outdoor)	MV HV Medium - High Voltage Vacuum Contactors
