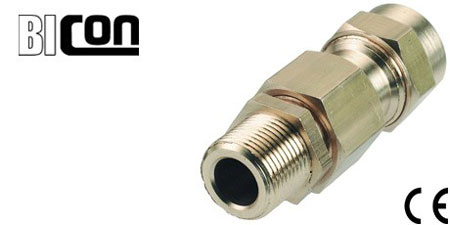

Prysmian CW LSF brass cable glands are used to terminate or gland all types of steel wire armoured (SWA) cables in indoor applications where low smoke zero halogen properties are required.

CW LSF brass cable gland kits include locknuts, earth tag and zero halogen gland shroud (LUL approved).

Prysmian CW LSF brass cable glands provide mechanical cable retention and electrical continuity via armour locking mechanism with IP54 ingress protection.

Low smoke zero halogen armoured power cables, in accordance with BS6724, are installed in fixed industrial installations where smoke and acid gas emission from fire affected cables would be hazardous to people and equipment.

CW LSF Brass Cable Glands

  • BS6724 Cable - Mains Power Cable XLPE SWA
  • LSF Low Smoke Zero Halogen Cable

BS6724 Cable - Mains Power Cable XLPE SWA LSF Low Smoke Zero Halogen



Prysmian CW LSF (low smoke and fume) brass cable glands are used to terminate XLPE and PVC insulated cables with steelLUL Approved Cable Glands wire armour (SWA) in outdoor applications.



CW LSF Brass Cable Glands

CW LSF Brass Cable Glands - Techincal Specification

Prysmian Bicon Ref (Standard) Prysmian Bicon Ref (Nickel Plated) Size Cable Dimensions (mm) CW Cable Gland Dimensions (mm)
Cable Diameter Ø (B) mm) Entry Thread (D) Thread Length (E) Length (F) Hexagon
Min Max A/F (G) A/C (H)
422LSF-51 422LSF-51V 16 8.0 13.2 M16×1.5 10 44 20.8 23.8
422LSF-71 422LSF-71 V 20SS 8.0 13.2 M20×1.5 10 44 23.4 26.7
422LSF-52 422LSF-52 V 20S 8.0 15.8 M20×1.5 10 46 25.7 29.2
422LSF-53 422LSF-53 V 20 11.7 20.8 M20×1.5 10 46 30.5 34
422LSF-55 422LSF-55 V 25 17.0 27.2 M25×1.5 10 51 37.6 42.2
422LSF-56 422LSF-56 V 32 23.5 33.5 M32×1.5 10 56 47.3 53.6
422LSF-57 422LSF-57 V 40 29.0 39.9 M40×1.5 15 59 56.4 61.5
422LSF-58 422LSF-58 V 50S 38.0 46.2 M50×1.5 15 64 65.5 72.1
422LSF-59 422LSF-59 V 50 39.5 52.6 M50×1.5 15 64 70.1 77.2
422LSF-61 422LSF-61 V 63 51.3 65.3 M63×1.5 15 67 80 87.4
422LSF-63 422LSF-63 V 75 62.5 78.0 M75×1.5 15 76 98.8 109.2
422LSF-64 422LSF-64 V 85 68 88 M85×2.0 20 110 115 126

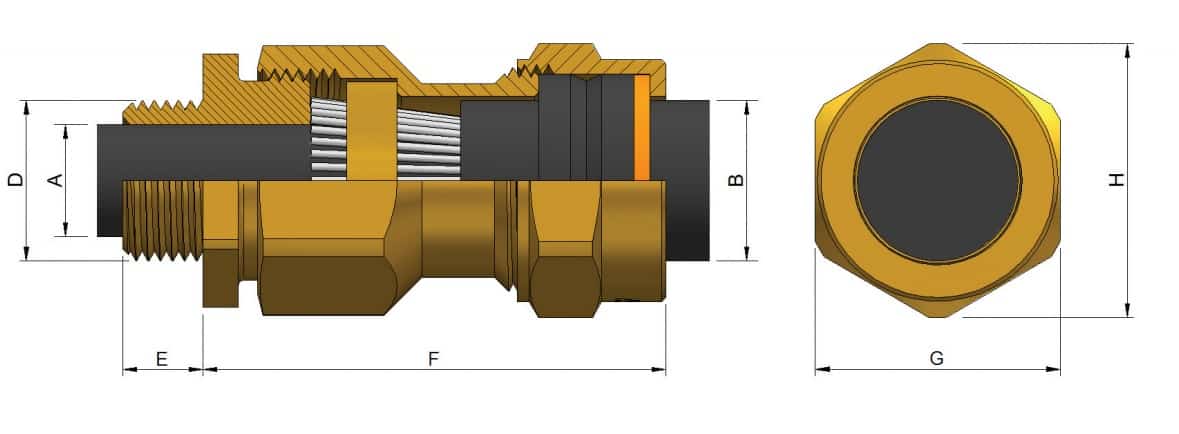

CW LSF Brass Cable Glands - Dimensions
