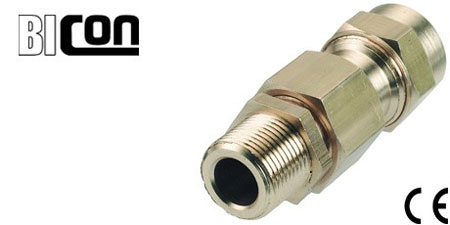

BICC BICON Glands LSF CW50S (Prysmian 422LSF-58) 38.0-46.2mm Cables



CW Cable Glands - LSF

  LSF BICC BICON Gland Kit CW50S

Prysmian 422LSF-58

Low Smoke Zero Halogen Cable Glands





Prysmian 422LSF-58

Prysmian BICON CW LSF Low Smoke & Fume Cable Glands
Prysmian BICON LSF50SCW 38.0-46.2mm Cable OD's
1 x CW50S LSF Cable Gland Kits per Pack

Prysmian CW LSF brass cable glands are used to terminate XLPE and PVC insulated cables with steel wire armour (SWA) in outdoor applications - CW LSF brass cable gland kits include locknuts, earth tag and zero halogen silicone gland shroud (LUL approved). Low smoke zero halogen (LSOH) cable glands are recommended for BS6724 XLPE/SWA power cable installations.

BICON CW LSF Cable Gland Kit - Prysmian 422LSF-58 Pack List

• CW Cable Gland
• Brass Earth Tag
• Brass Locknut
• LSF Cable Gland Shroud
• Zero Halogen Silicone Seals & Shrouds - LU London Underground Approved



• Manufacturer: Prysmian
• Brand: Bicon
• Cable Gland Size: CW50S
• Quantity Per Kit: 1 Cable Gland
• Cable Gland Type: Brass
• Cable Type: SWA Steel Wire Armoured BS6724
• Specification: LSF Low Smoke & Fume | LSOH Low Smoke Zero Halogen
• Under Armour Cable Diameter (A): 38.1mm Maximum
• Overall Cable Diameter (B): 38.0mm Minimum
• Overall Cable Diameter (B): 46.2mm Maximum
• Armour Wire Diameter: 2.0/2.5mm
• Entry Thread (D) : M50 x 1.5
• Thread Length (E) : 15mm
• Protrusion Length (F): 64mm
• Hexagon A/F (G): 65.5mm
• Hexagon A/C (H): 72.1mm
• Order Code: CW50S 422LSF-58
• Industrial Application Also: Prysmian CW50S Cable Gland KA419-58

Prysmian CW LSF brass cable glands provide mechanical cable retention and electrical continuity via armour locking mechanism.



BICC BICON Glands LSF CW50S (Prysmian 422LSF-58) 38.0-46.2mm Cables

BICON Gland Kit Packs - LSF CW50 - 38.0-46.2mm Cable OD's
