BICC BICON Glands LSF CW50 (Prysmian 422LSF-59) 39.5-52.6mm Cables



Prysmian CW LSF Cable Gland CW50CW Cable Glands - LSF

  LSF BICC BICON Gland Kit CW50

BiconPrysmian 422LSF-59

Low Smoke Zero Halogen Cable Glands

LSF Zero Halogen Cables





Prysmian 422LSF-59

Prysmian BICON CW LSF Low Smoke & Fume Cable Glands
Prysmian BICON LSF50CW 39.5-52.6mm Cable OD's
1 x CW50 LSF Cable Gland Kits per Pack


Prysmian CW LSF brass cable glands are used to terminate XLPE and PVC insulated cables with steelLSF wire armour (SWA) in outdoor applications - CW LSF brass cable gland kits include locknuts, earth tag and zero halogen silicone gland shroud (LUL approved). Low smoke zero halogen (LSOH) cable glands are recommended for BS6724 XLPE/SWA power cable installations.

CW Brass Cable Glands

BICON CW LSF Cable Gland Kit - Prysmian 422LSF-59 Pack List

  • CW Cable GlandLondon Underground Approved
  • Brass Earth Tag
  • Brass Locknut
  • LSF Cable Gland Shroud
  • Zero Halogen Silicone Seals & Shrouds - LU London Underground Approved



Prysmian CW50 LSF Brass Cable Gland Kit

  • Manufacturer: Prysmian
  • Brand: Bicon
  • Cable Gland Size: CW50
  • Quantity Per Kit: 1 Cable Gland
  • Cable Gland Type: Brass
  • Cable Type: SWA Steel Wire Armoured BS6724
  • Specification: LSF Low Smoke & Fume | LSOH Low Smoke Zero Halogen
  • Under Armour Cable Diameter (A): 44.0mm Maximum
  • Overall Cable Diameter (B): 39.5mm Minimum
  • Overall Cable Diameter (B): 52.6mm Maximum
  • Armour Wire Diameter: 2.0/2.5mm
  • Entry Thread (D) : M50 x 1.5
  • Thread Length (E) : 15mm
  • Protrusion Length (F): 64mm
  • Hexagon A/F (G): 70.1mm
  • Hexagon A/C (H): 72.2mm
  • Order Code: CW50 422LSF-59
  • Industrial Application Also: Prysmian CW50 Cable Gland KA419-59

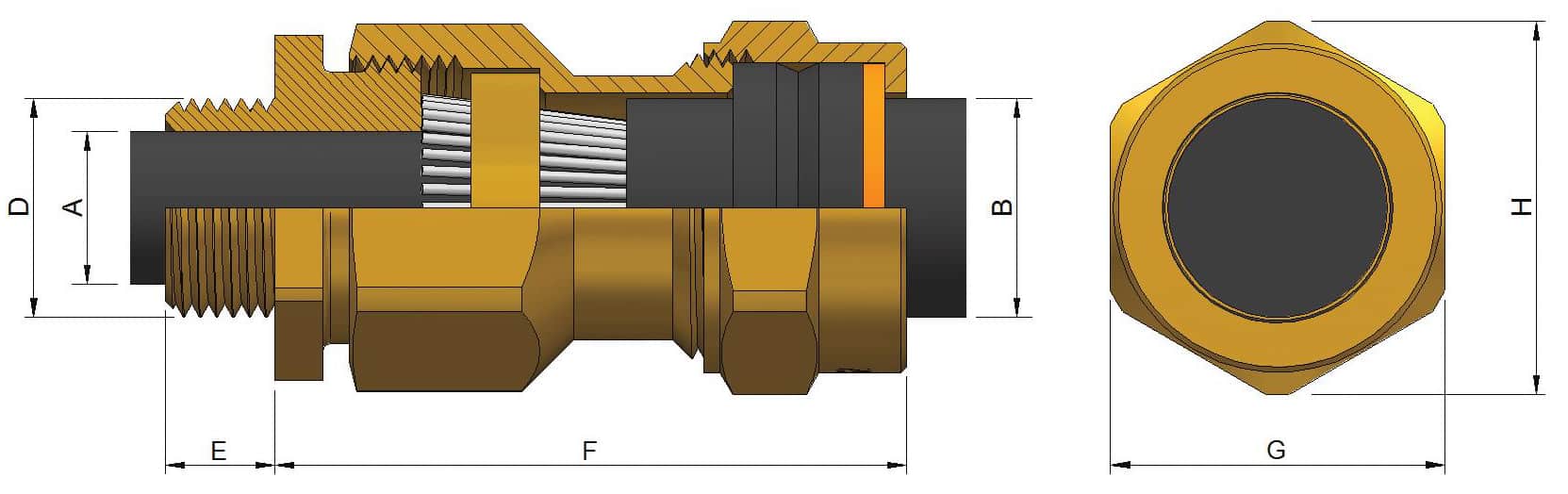

CW Brass Cable Glands - Dimensions



Prysmian CW LSF brass cable glands provide mechanical cable retention and electrical continuity via armour locking mechanism.
