BICC BICON Glands LSF CW20 (Prysmian 422LSF-53) 11.7-20.8m Cables

CW Cable Glands - LSF

  LSF BICC BICON Gland Kit CW20

Prysmian 422LSF-53

Low Smoke Zero Halogen Cable Glands





Prysmian 422LSF-53

Prysmian BICON CW LSF Low Smoke & Fume Cable Glands
Prysmian BICON LSF20CW 11.7-20.8mm Cable OD's
2 x CW20 LSF Cable Gland Kits per Pack

Prysmian CW LSF brass cable glands are used to terminate XLPE and PVC insulated cables with steel wire armour (SWA) in outdoor applications - CW LSF brass cable gland kits include locknuts, earth tag and zero halogen silicone gland shroud (LUL approved). Low smoke zero halogen (LSOH) cable glands are recommended for BS6724 XLPE/SWA power cable installations.

BICON CW LSF Cable Gland Kit - Prysmian 422LSF-53 Pack List

• CW Cable Gland
• Brass Earth Tag
• Brass Locknut
• LSF Cable Gland Shroud
• Zero Halogen Silicone Seals & Shrouds - LU London Underground Approved



• Manufacturer: Prysmian
• Brand: Bicon
• Cable Gland Size: CW20
• Quantity Per Kit: 2 Cable Glands
• Cable Gland Type: Brass
• Cable Type: SWA Steel Wire Armoured BS6724
• Specification: LSF Low Smoke & Fume | LSOH Low Smoke Zero Halogen

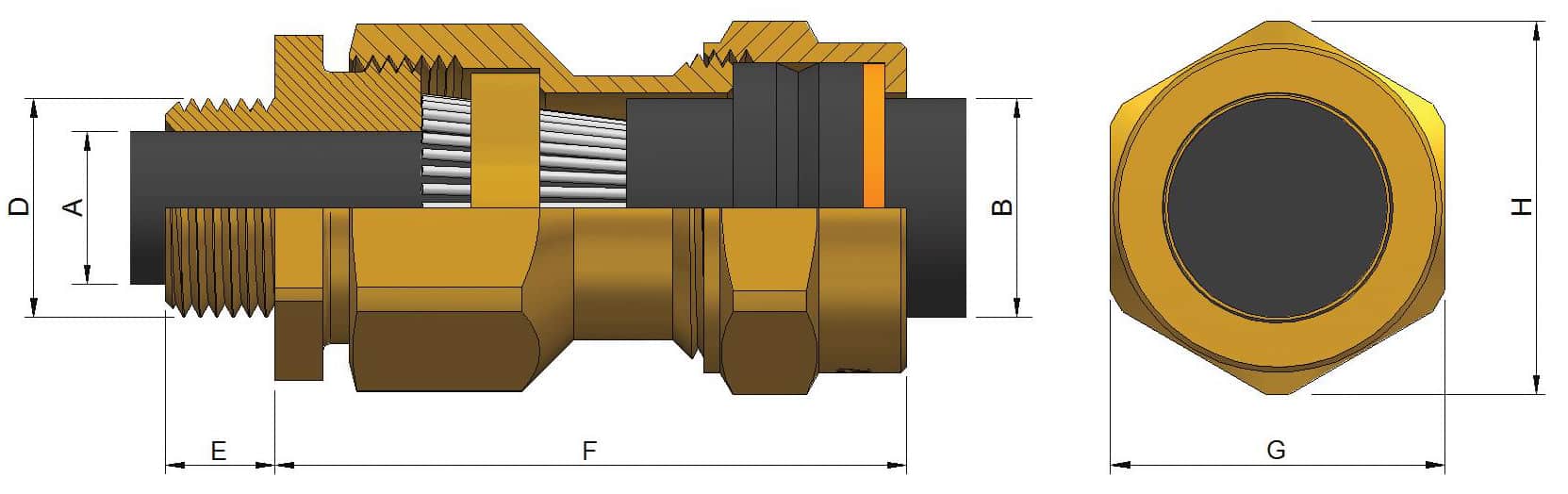

• Under Armour Cable Diameter (A): 13.9mm Maximum
• Overall Cable Diameter (B): 11.7mm Minimum
• Overall Cable Diameter (B): 20.8mm Maximum
• Armour Wire Diameter: 0.9/1.25mm
• Entry Thread (D) : M20 x 1.5
• Thread Length (E) : 10mm
• Protrusion Length (F): 46mm
• Hexagon A/F (G): 30.5mm
• Hexagon A/C (H): 34mm
• Order Code: CW20 422LSF-53
• Industrial Application Also: Prysmian CW20 Cable Gland KA419-53

Prysmian CW LSF brass cable glands provide mechanical cable retention and electrical continuity via armour locking mechanism.



BICC BICON Glands LSF CW20 (Prysmian 422LSF-53) 11.7-20.8m Cables

BICON Gland Kit Packs - LSF CW20 - 11.7-20.8mm Cable OD's
