BICC BICON Glands LSF CW63 (Prysmian 422LSF-61) 51.3-65.3mm Cables



Prysmian CW LSF Cable Gland CW63CW Cable Glands - LSF

  LSF BICC BICON Gland Kit CW63

BiconPrysmian 422LSF-61

Low Smoke Zero Halogen Cable Glands

LSF Zero Halogen Cables





Prysmian 422LSF-61

Prysmian BICON CW LSF Low Smoke & Fume Cable Glands
Prysmian BICON LSF63CW 51.3-65.3mm Cable OD's
1 x CW63 LSF Cable Gland Kits per Pack


Prysmian CW LSF brass cable glands are used to terminate XLPE and PVC insulated cables with steelLSF wire armour (SWA) in outdoor applications - CW LSF brass cable gland kits include locknuts, earth tag and zero halogen silicone gland shroud (LUL approved). Low smoke zero halogen (LSOH) cable glands are recommended for BS6724 XLPE/SWA power cable installations.

CW Brass Cable Glands


BICON CW LSF Cable Gland Kit - Prysmian 422LSF-61 Pack List

  • CW Cable GlandLondon Underground Approved
  • Brass Earth Tag
  • Brass Locknut
  • LSF Cable Gland Shroud
  • Zero Halogen Silicone Seals & Shrouds - LU London Underground Approved



Prysmian CW63 LSF Brass Cable Gland Kit

  • Manufacturer: Prysmian
  • Brand: Bicon
  • Cable Gland Size: CW63
  • Quantity Per Kit: 1 Cable Gland
  • Cable Gland Type: Brass
  • Cable Type: SWA Steel Wire Armoured BS6724
  • Specification: LSF Low Smoke & Fume | LSOH Low Smoke Zero Halogen
  • Under Armour Cable Diameter (A): 55.9mm Maximum
  • Overall Cable Diameter (B): 51.3mm Minimum
  • Overall Cable Diameter (B): 65.3mm Maximum
  • Armour Wire Diameter: 2.5mm
  • Entry Thread (D) : M63 x 1.5
  • Thread Length (E) : 15mm
  • Protrusion Length (F): 67mm
  • Hexagon A/F (G): 80mm
  • Hexagon A/C (H): 87.4mm
  • Order Code: CW63 422LSF-61
  • Industrial Application Also: Prysmian CW63 Cable Gland KA419-61

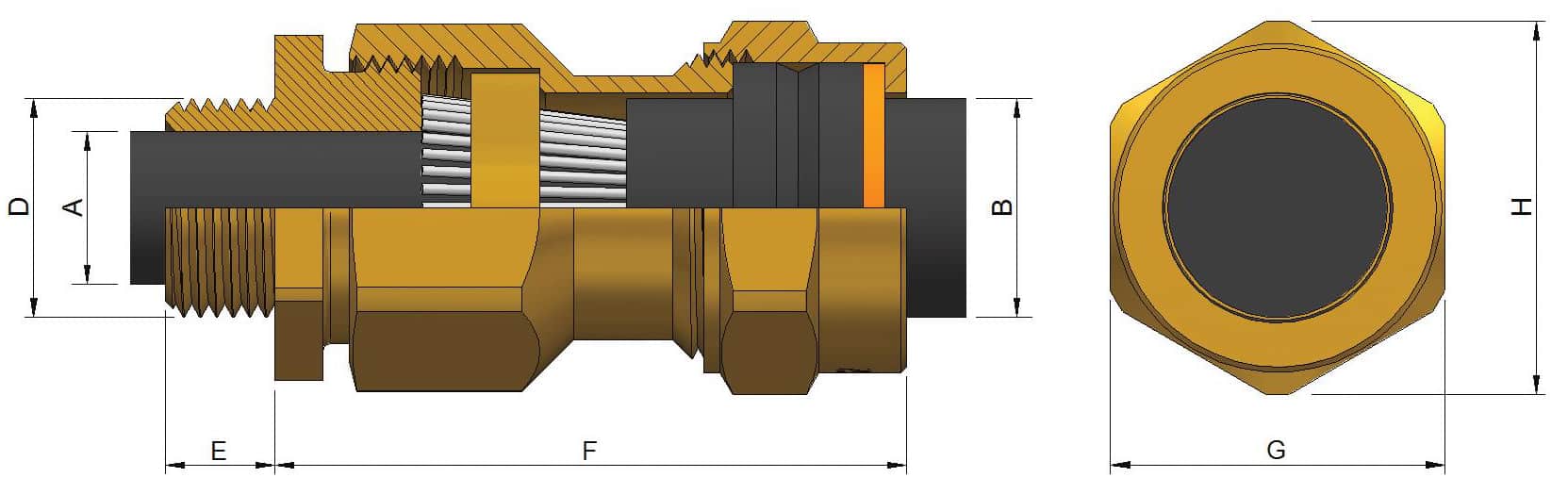

CW Brass Cable Glands - Dimensions

Prysmian CW LSF brass cable glands provide mechanical cable retention and electrical continuity via armour locking mechanism.





Adobe BICC BICON Glands LSF CW63 (Prysmian 422LSF-61) 51.3-65.3mm Cables

Adobe BICON Gland Kit Packs - LSF CW63 - 51.3-65.3mm Cable OD's
