BICC BICON Glands LSF CW40 (Prysmian 422LSF-57) 29.0-39.9mm Cables

Prysmian CW LSF Cable Gland CW40CW Cable Glands - LSF

  LSF BICC BICON Gland Kit CW40

BiconPrysmian 422LSF-57

Low Smoke Zero Halogen Cable Glands

LSF Zero Halogen Cables





Prysmian 422LSF-57

Prysmian BICON CW LSF Low Smoke & Fume Cable Glands
Prysmian BICON LSF40CW 29.0-39.9mm Cable OD's
1 x CW40 LSF Cable Gland Kits per Pack


Prysmian CW LSF brass cable glands are used to terminate XLPE and PVC insulated cables with steelLSF wire armour (SWA) in outdoor applications - CW LSF brass cable gland kits include locknuts, earth tag and zero halogen silicone gland shroud (LUL approved). Low smoke zero halogen (LSOH) cable glands are recommended for BS6724 XLPE/SWA power cable installations.

CW Brass Cable Glands

BICON CW LSF Cable Gland Kit - Prysmian 422LSF-57 Pack List

  • CW Cable GlandLondon Underground Approved
  • Brass Earth Tag
  • Brass Locknut
  • LSF Cable Gland Shroud
  • Zero Halogen Silicone Seals & Shrouds - LU London Underground Approved



Prysmian CW40 LSF Brass Cable Gland Kit

  • Manufacturer: Prysmian
  • Brand: Bicon
  • Cable Gland Size: CW40
  • Quantity Per Kit: 1 Cable Gland
  • Cable Gland Type: Brass
  • Cable Type: SWA Steel Wire Armoured BS6724
  • Specification: LSF Low Smoke & Fume | LSOH Low Smoke Zero Halogen
  • Under Armour Cable Diameter (A): 32.1 mm Maximum
  • Overall Cable Diameter (B): 29.0mm Minimum
  • Overall Cable Diameter (B): 39.9mm Maximum
  • Armour Wire Diameter: 1.6/2.0mm
  • Entry Thread (D) : M40 x 1.5
  • Thread Length (E) : 15mm
  • Protrusion Length (F): 59mm
  • Hexagon A/F (G): 56.4mm
  • Hexagon A/C (H): 61.5mm
  • Order Code: CW40 422LSF-57
  • Industrial Application Also: Prysmian CW40 Cable Gland KA419-57

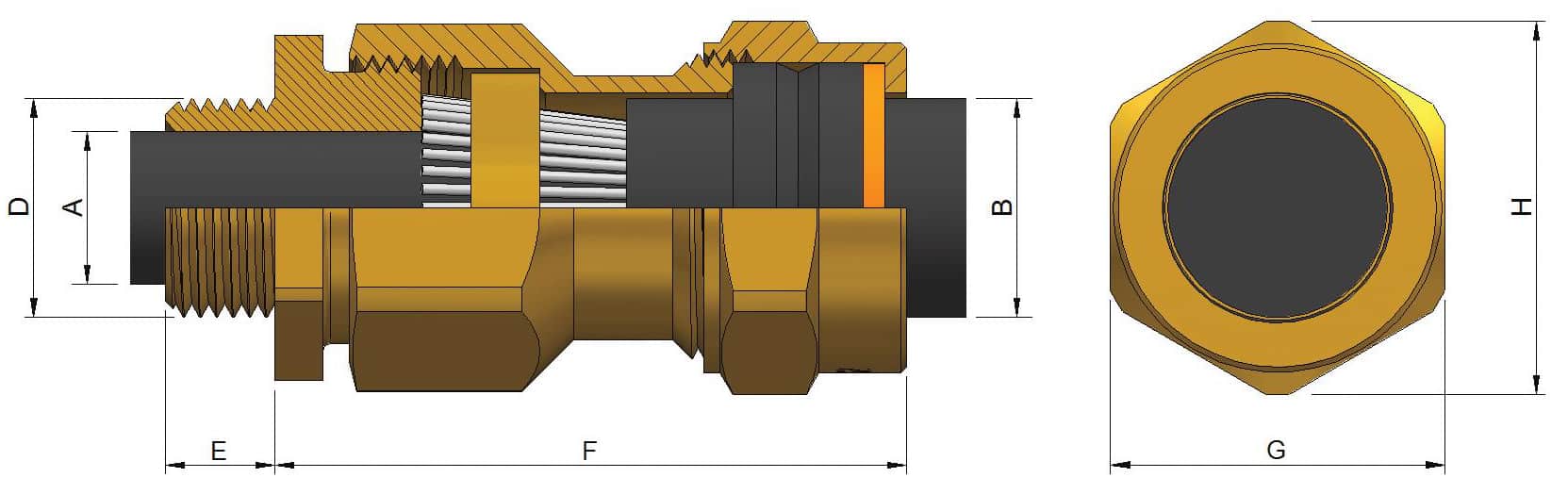

CW Brass Cable Glands - Dimensions


Prysmian CW LSF brass cable glands provide mechanical cable retention and electrical continuity via armour locking mechanism.
