BICC BICON Glands LSF CW25 (Prysmian 422LSF-55) 17.0-27.2mm Cables

CW Cable Glands - LSF

  LSF BICC BICON Gland Kit CW25

Prysmian 422LSF-55

Low Smoke Zero Halogen Cable Glands





Prysmian 422LSF-55

Prysmian BICON CW LSF Low Smoke & Fume Cable Glands
Prysmian BICON LSF25CW 17.0-27.2mm Cable OD's
2 x CW25 LSF Cable Gland Kits per Pack

Prysmian CW LSF brass cable glands are used to terminate XLPE and PVC insulated cables with steel wire armour (SWA) in outdoor applications - CW LSF brass cable gland kits include locknuts, earth tag and zero halogen silicone gland shroud (LUL approved). Low smoke zero halogen (LSOH) cable glands are recommended for BS6724 XLPE/SWA power cable installations.

BICON CW LSF Cable Gland Kit - Prysmian 422LSF-55 Pack List

• CW Cable Gland
• Brass Earth Tag
• Brass Locknut
• LSF Cable Gland Shroud
• Zero Halogen Silicone Seals & Shrouds - LU London Underground Approved



• Manufacturer: Prysmian
• Brand: Bicon
• Cable Gland Size: CW25
• Quantity Per Kit: 2 Cable Glands
• Cable Gland Type: Brass
• Cable Type: SWA Steel Wire Armoured BS6724
• Specification: LSF Low Smoke & Fume | LSOH Low Smoke Zero Halogen

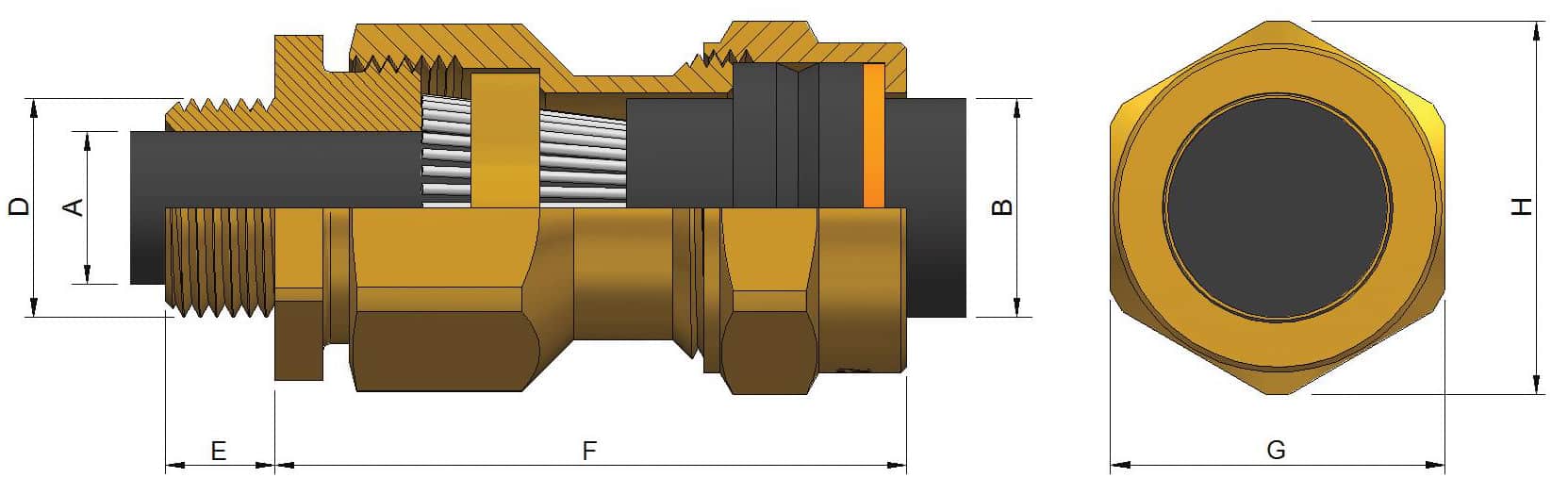

• Under Armour Cable Diameter (A): 19.9mm Maximum
• Overall Cable Diameter (B): 17.0mm Minimum
• Overall Cable Diameter (B): 27.2mm Maximum
• Armour Wire Diameter: 1.25/1.6mm
• Entry Thread (D) : M25 x 1.5
• Thread Length (E) : 10mm
• Protrusion Length (F): 51mm
• Hexagon A/F (G): 37.6mm
• Hexagon A/C (H): 42.2mm
• Order Code: CW25 422LSF-55
• Industrial Application Also: Prysmian CW25 Cable Gland KA419-55

Prysmian CW LSF brass cable glands provide mechanical cable retention and electrical continuity via armour locking mechanism.



BICON Gland Kit Packs - LSF CW25 - 17.0-27.2mm Cable OD's
