BICC BICON Glands LSF CW20SS (Prysmian 422LSF-71) 8.0-13.2m Cables

Prysmian CW LSF Cable Gland CW20SSCW Cable Glands - LSF

  LSF BICC BICON Gland Kit CW20SS

BiconPrysmian 422LSF-71

Low Smoke Zero Halogen Cable Glands

LSF Zero Halogen Cables





Prysmian 422LSF-71

Prysmian BICON CW LSF Low Smoke & Fume Cable Glands
Prysmian BICON LSF20SSCW 8.0-13.2mm Cable OD's
2 x CW20SS LSF Cable Gland Kits per Pack


Prysmian CW LSF brass cable glands are used to terminate XLPE and PVC insulated cables with steelLSF wire armour (SWA) in outdoor applications - CW LSF brass cable gland kits include locknuts, earth tag and zero halogen silicone gland shroud (LUL approved). Low smoke zero halogen (LSOH) cable glands are recommended for BS6724 XLPE/SWA power cable installations.

CW Brass Cable Glands

BICON CW LSF Cable Gland Kit - Prysmian 422LSF-71 Pack List

  • CW Cable GlandLondon Underground Approved
  • Brass Earth Tag
  • Brass Locknut
  • LSF Cable Gland Shroud
  • Zero Halogen Silicone Seals & Shrouds - LU London Underground Approved



Prysmian CW20SS LSF Brass Cable Gland Kit

  • Manufacturer: Prysmian
  • Brand: Bicon
  • Cable Gland Size: CW20SS
  • Quantity Per Kit: 2 Cable Glands
  • Cable Gland Type: Brass
  • Cable Type: SWA Steel Wire Armoured BS6724
  • Specification: LSF Low Smoke & Fume | LSOH Low Smoke Zero Halogen
  • Under Armour Cable Diameter (A): 8.6mm Maximum
  • Overall Cable Diameter (B): 8.0mm Minimum
  • Overall Cable Diameter (B): 13.2mm Maximum
  • Armour Wire Diameter: 0.9mm
  • Entry Thread (D) : M20 x 1.5
  • Thread Length (E) : 10mm
  • Protrusion Length (F): 44mm
  • Hexagon A/F (G): 23.4mm
  • Hexagon A/C (H): 26.7mm
  • Order Code: CW20SS 422LSF-71
  • Industrial Application Also: Prysmian CW20SS Cable Gland KA419-71

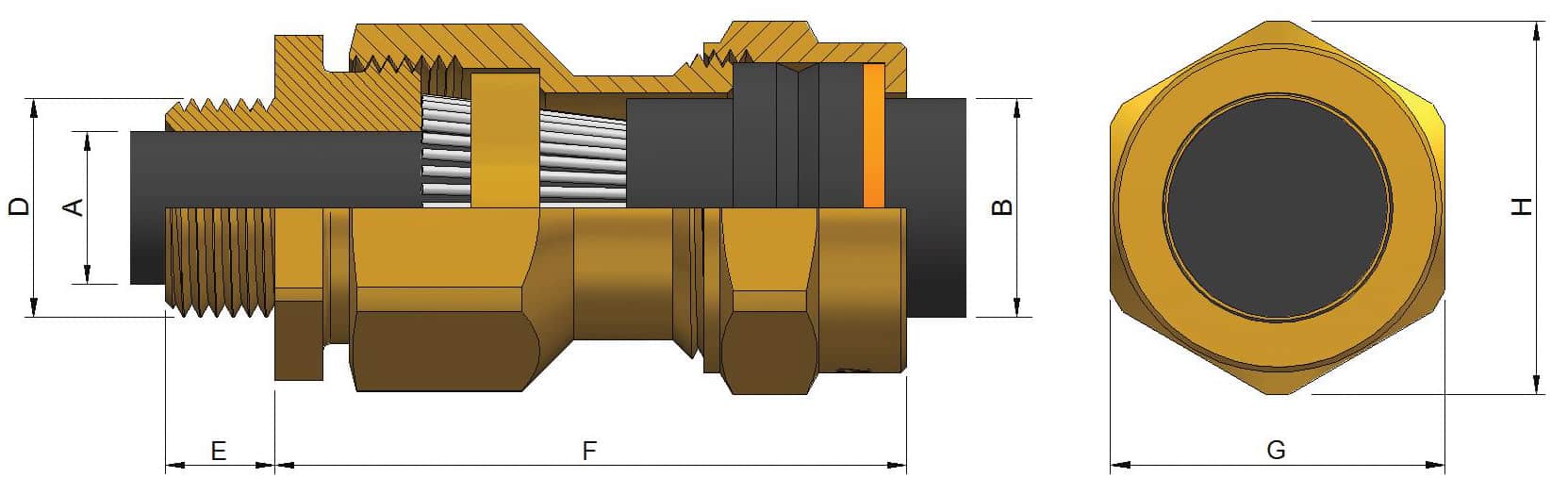

CW Brass Cable Glands - Dimensions

Prysmian CW LSF brass cable glands provide mechanical cable retention and electrical continuity via armour locking mechanism.

Adobe BICC BICON Glands LSF CW20SS (Prysmian 422LSF-71) 8.0-13.2mm

Adobe BICON Gland Kit Packs - LSF CW20SS - 8.0-13.2mm Cable OD's
