Lucy Zodion Fortress Mini Feeder Pillars Chosen For BT Openreach Contractors

By Chris Dodds on 20th July, 2012

Follow @ThorneanDerrick







T&D supplied Carillion telent, the BT Openreach support services contractor, with Lucy Mini Feeder Pillars.

Telent provides 300 qualified cabling engineers constantly on-call to carry out civil engineering, pole renewals and underground cabling to support stringent service level requirements for BT Openreach.

Lucy Zodion Fortress Mini Pillars type 4816 were specified to provide LV electricity distribution for copper cables from the telephone exchange to your home.

Lucy Zodion Fortress Mini Steel Pillar Type 4816

Pillar size code	4816
Nominal Size in inches (WxD)	19 x 10
Height Above Ground	1000mm
Root Section (R)	300mm
Width (W)	503mm
Depth (D)	250mm
Door opening height (DH)	800mm
Working depth (WD)	199mm
Backboard size (WxH)	480mm x 780mm
Weight	47kg



Lucy Fortress Mini Pillars have been designed as robust and effective enclosures to provide electrical services for a variety of applications, the feeder pillars incorporate a high level of corrosion proofing to ensure durability and a long maintenance free life. The top mounted tri-head lock secures the door in place.

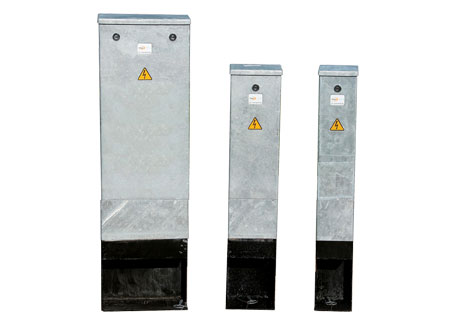

Pictured: Lucy Zodion Fortress Mini Steel Pillars

The Mini pillar range is available in 7 sizes to meet most applications for the smaller installation. The 7 pillars sizes are also available in two material finishes:

1. HDG - sheet steel which is hot dip galvanised to BS 729
2. HDP - sheet steel which is hot dip galvanised to BS 729 and then treated and painted as standard in grey

Lucy Zodion Fortress Mini Steel Pillars

Specifications	Removable doors with tri-head locks Back board made from 18mm treated exterior grade plywood Detachable roof enabling pre-equipped back board to be installed on site ‘Danger’ warning label fitted in door recess Earth lead between pillar body and door High quality UV resistant paint to an average thickness of 60 microns Stainless steel fixings and locks
Options	Stainless steel cabinet Customer specification pre-wired solutions available Other colours / labels available to special order Optional G2A Highways Agency paint specification

Lucy Lighting Fortress Feeder Pillars including Single Door Feeder Pillars, Double Door Feeder Pillars, Mini Feeder Pillars & Slimeline Feeder Pillars.
