Double Door Feeder Pillars - Galvanised & Stainless Steel

Lucy Lighting Fortress Double Door Feeder Pillars are robust pillars providing low voltage electricity distribution for a variety of applications.

The feeder pillars incorporate a high level of corrosion resistance to ensure durability and a long maintenance free life. A wide variety of Lucy feeder pillars are available.

Lucy Lighting Fortress double door feeder pillars are available with following optional extras : internal gland plate, in fill panel for root section, yale lock, hasp and staple, heater kit, 13amp socket kit and lighting kit.

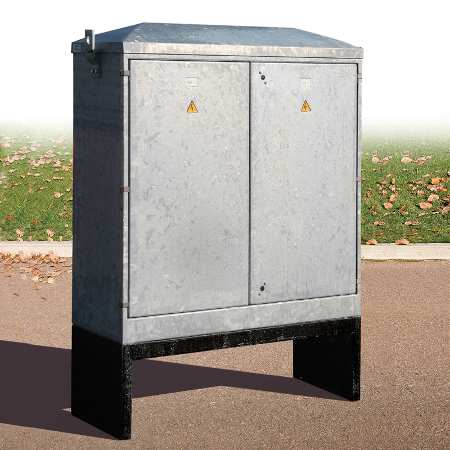

Pictured: Lucy Lighting Fortress Feeder Pillars - Double Door Pillars

Lucy Lighting Fortress Feeder Pillars - Double Door Pillars

Lucy Lighting manufactures Fortress Feeder Pillars for a wide range of LV electrical distribution applications including street lighting control, motorway, car park lighting, airports, private housing developments, railways, ports and docks, MOD, water utilities, power stations and pharmaceutical sites.

Lucy Lighting Fortress Double Door Feeder Pillar - Specification :

  • Two, three hinged door feeder pillars
  • Long life hinges made from solid stainless steel
  • Two Lucy wedge locks fitted as standard
  • Backboard made from 18mm thick treated plywood
  • Detachable root section finished in bitumen enriched paint
  • Danger warning label fitted in a recess in the feeder pillar door
  • Earth lead connection supplied from feeder pillar body to door
  • HDP feeder pillars powder coated grey as standard
  • High quality UV resistant paint to a minimum 60 microns thickness
  • Feeder pillar door seal up to IP65
  • Detachable pillar roof
  • No fixed bar between doors allows total access for installing equipment

HDG - Hot Dip Galvanised Steel Feeder Pillars (3mm or 5mm thick)

HDP - Hot Dip Galvanised Steel Feeder Pillars & Painted

Lucy Lighting Fortress Feeder Pillars - Double Door Pillars - Product Range
Pillar Size Code 14 16 18 20 22 24 26 28 30
Height Above Ground (H) (mm) 1300 1300 1300 1300 1600 1600 1600 1600 1600
Root Section (R) (mm) 380 380 380 380 380 380 380 380 380
Width (W) (mm) 1250 1500 1750 2000 1250 1500 1750 2000 2250
Depth (D) (mm) 450 450 450 450 450 450 450 450 450
Door Opening Height (DH) (mm) 980 980 980 980 1280 1280 1280 1280 1280
Door Opening Width (DW) (mm) 1148 1398 1648 1898 1148 1398 1648 1898 2148
Working Depth (WD) (mm) 375 375 375 375 375 375 375 375 375
Backboard Size (WxH) (mm) 1225 x 1085 1475 x 1085 1725 x 1085 1975 x 1085 1225 x 1385 1475 x 1385 1725 x 1385 1975 x 1385 2225 x 1385
Weight (kg) (Thickness 3mm) 176 202 234 266 201 231 269 305 343

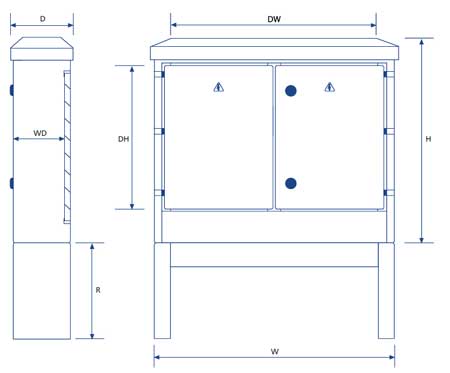

Pictured: Lucy Lighting Fortress Feeder Pillars - Double Door Pillars - Dimensions Illustration

Lucy Lighting Fortress Feeder Pillars - Double Door Pillars - Dimensions Illustration
