Lucy Zodion Westminster Range of Retractable Feeder Pillars for LV Power Distribution

By Chris Dodds on 21st February, 2014

Follow us on LinkedIn

Lucy Zodion Westminster Range of Retractable Feeder Pillars for LV Power Distribution







Lucy Zodion’s latest Feeder Pillar design packs a host of features in an extremely robust structure that can be locked and folded flat when not in use.

Lucy Zodion Westminster feeder pillars can be equipped with earth leakage and overload protection devices to ensure high operator safety levels and is therefore ideal for supplying temporary power to markets, shopping centres and airports.

Westminster Distribution Feeder Pillars can be customised to suit project specifications incorporating isolator switches, PECU, contactors, heaters, fuse boards (MCB or HRC fuses), circuit breakers, fusegear and cable terminations.

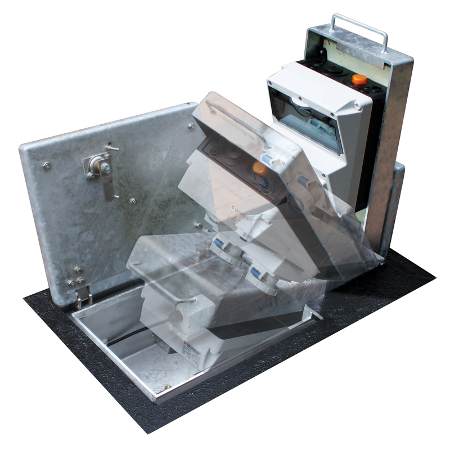

Pictured: Lucy Zodion Westminster Retractable Feeder Pillar

Lucy Zodion Westminster Retractable Feeder Pillar

Westminster Feeder Pillars allow shallow depth excavation with power cables and copper earthing mats placed into position - this allows the Westminster Pillars to be moved into position and power cables terminated into supplied junction boxes with ease.

The feeder pillars can be surrounded with block paving to complete an aesthetic installation with reduced environmental impact and street furniture clutter.

Lucy Zodion Westminster Retractable Feeder Pillar Features & Benefits

  • Easy to use and easy to install feeder pillars
  • Custom designed LV feeder pillars
  • Compact, low installation depth avoids buried electrical cable services and gas pipes
  • Numerous power and data versions
  • Different infill depths
  • Feeder pillar folds away to leave a finished floor to blend into the existing ground surface

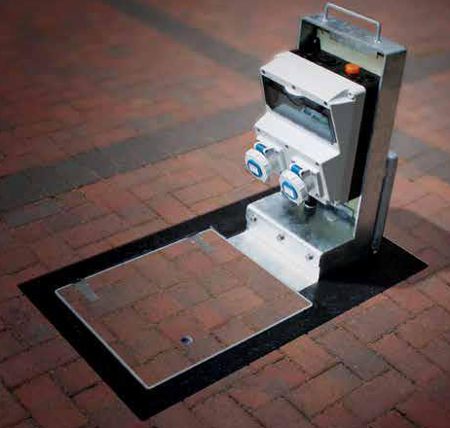

Lucy Zodion Westminster Retractable Feeder Pillar

Lucy Zodion Westminster Retractable Feeder Pillar Specification

  • 5mm/10mm galvanised steel construction
  • Long life stainless steel wedge lock and hinges
  • Electrical components protected to IP67/68
  • 18mm thick treated exterior grade plywood backboard
  • Pre-drilled cable entries
  • Hinged stainless steel lock cover
  • Stainless steel anti-vermin mesh
  • Door seal
  • 30mm deep recess in cover for infill medium
  • Gas strut assisted lid
  • All components fully earth bonded
  • Bolted construction for easy panel replacement in case of damage
  • 110/230/400V a.c. variants
  • Weight: Approximately 91kgs
  • ​100mm Positive Drainage Spigot
  • Variations of 16/32/63 A SPN and TPN Sockets

Lucy Zodion Westminster Retractable Feeder Pillar Options

  • Stainless steel construction
  • Data Point
  • Water Point
  • Infill Plates - Stainless Steel Treadplate or Custom Design Treadplate
  • Supply Feeder Pillar
  • External Terminal Box with Flying Leads
  • Possibility to integrate Smart Metering facilities
  • Earthing mat
