Fire Rated Isolators With LU 1-085 (Section 12) Approval

By Chris Dodds on 9th June, 2014

Follow @ThorneanDerrick

Craig & Derricott Isolators & Switch Disconnectors

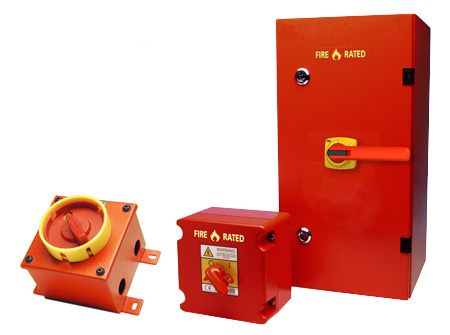

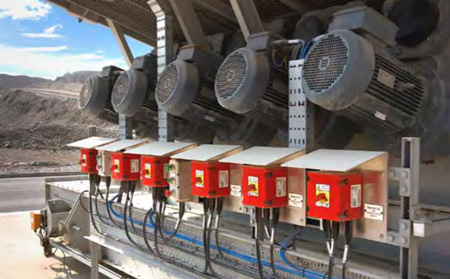

Fire Rated Isolators



Craig & Derricott have been producing fire rated isolators for more than 20 years. Combining switching expertise with the specific requirements of the ventilation industry has led to the development of the 'High Temperature' range of switch disconnectors or fire rated isolators.

Excellent switching characteristics with high temperature environment contact stability makes the Craig & Derricott range of isolators suitable for fire rated applications. The critical role performed by Craig & Derricott isolators is to maintain the power to vital equipment such as ventilation fans, allowing the safe evacuation of a business or public area.

2, 3, 4 and 6 pole fire rated isolators are available in sheet steel with current ratings up to 200amps.

Often these fire rated isolators are mounted local to the extraction fans and, as an assembly, it is essential that they comply with the stringent requirements of BS EN 12101 - 2003 - Smoke & Heat Control Systems,(Specification for natural smoke and heat exhaust ventilators). This part of this European Standard specifies requirements and gives test methods for natural smoke and heat exhaust ventilators which are intended to be installed as a component of a natural smoke and heat exhaust system.

Fire rated isolators (F400 class) are available in 20amp, 32amp, 63amp and 125amp current ratings. 160amp and 200amp isolators are also available.



Craig & Derricott F300/F400 Fire Rated Enclosed Isolators Specifications

Product No.	Rating	Format	Assembly Form	Temp Class	Encl. Size (IP65)
FSDMR0202	20A	2P	Lid mounted in sheet steel enclosure	F400	A
FSDMR0203		3P
FSDMR0203EB		3P+2EB Aux
FSDMR0203N		3P+N
FSDMR0204		4P
FSDMR0206		6P
FSDDR0202	20A	2P	Lid mounted in die-cast aluminium enclosure	F400	E
FSDDR0203		3P
FSDDR0203EB		3P+2EB Aux
FSDDR0203N		3P+N
FSDDR0204		4P
FSDDR0206		6P			B
FSDDR0206EB		6P+2EB
FSDDR0322	32A	2P	Lid mounted in die-cast aluminium enclosure	F400	B
FSDDR0323		3P
FSDDR0323EB		3P+2EB Aux
FSDDR0323N		3P+N
FSDDR0324		4P
FSDDR0326		6P
FSDDR0326EB		6P+2EBAux
FSDMR0632	63A	2P	Base mounted in hinged door sheet steel enclosure	F400	C
FSDMR0633		3P
FSDMR0633EB		3P+2EB Aux
FSDMR0633N		3P+N
FSDMR0634		4P
FSDMR0636		6P
FSDMR0636EB		6P+2EBAux
RS1BD11/HPHT	125A	2P	Base mounted in hinged door sheet steel enclosure	F400	D
RS1BT21/HPHT		3P
RS1BT31/2EB/HPHT		3P+2EB Aux
RS1BT21/HPHT/NL		3P+N
RS1BQ21/HPHT		4P
RS1BY31/HPHT		6P
RS1BY41/2EB/HPHT		6P+2EBAux
F3SDR01603	160A	3P	Base mounted in hinged door sheet steel enclosure	F300	*5
F3SDR01603NL		3P+NL
F3SDR01604		4P
F3SDR01606		6P			*7
F3SDR01606NL		6P+NL
F3SDR02003	200A	3P	Base mounted in hinged door sheet steel enclosure	F300	*5
F3SDR02003NL		3P+NL
F3SDR02004		4P
F3SDR02006		6P			*7
F3SDR02006NL		6P+NL
F3SDR02503	250A	3P	Base mounted in hinged door sheet steel enclosure	F300	*5
F3SDR02503NL		3P+NL
F3SDR02504		4P
F3SDR02506		6P			*7
F3SDR02506NL		6P+NL
F3SDR03153	315A	3P	Base mounted in hinged door sheet steel enclosure	F300	*6
F3SDR03153NL		3P+NL
F3SDR03154		4P
F3SDR03156		6P			*9
F3SDR03156NL		6P+NL
F3SDR04003	400A	3P	Base mounted in hinged door sheet steel enclosure	F300	*6
F3SDR04003NL		3P+NL
F3SDR04004		4P
F3SDR04006		6P			*9
F3SDR04006NL		6P+NL
F3SDR06303	630A	3P	Base mounted in hinged door sheet steel enclosure	F300	*8
F3SDR06303​NL		3P+NL
F3SDR06304		4P
F3SDR06306		6P			*9
F3SDR06306NL		6P+NL



LU London Underground, Section 12 & 1-085

Craig & Derricott fire rated isolators are London Underground Section 12 approved for installation on theunderground rail network. Following the Kings Cross fire in 1987 and the Fennell Enquiry into that tragic event, new legislation was enacted in Section 12 of the Fire Precaution Act 1971, namely The Fire Precautions (Sub-Surface Railway Stations) Regulations 1989. Subsequently, the legislation was developed further to become The Fire Precautions (Sub-surface Railway Stations) (England) Regulations 2009. The legislation is to control the use of materials entering below ground stations and locations. This is controlled by ensuring that materials comply with LU Standard 1-085 ‘Fire Safety Performance of Materials’.

See also : LU 1-085 Approved Rail Cable Labels For London Underground Projects From Silver Fox

T&D are Link-up Registered and Approved Vendors to Network Rail and TfL London Underground (LU).

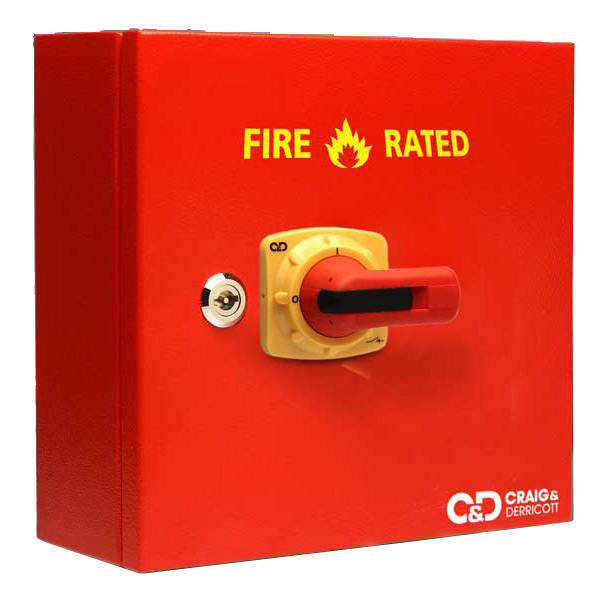

Picture: Craig & Derricott Fire Rated Isolator : i-switch Disconnector F400 Temperature Class

Fire Rated Isolators for High Temperature Applications Specification

According to BS EN 12101-3 (Smoke and Heat Control Systems), the specification which covers powered smoke and heat exhaust ventilators, there are several classes of fire performance duty. These fire ratings define specifically the temperature gradient and upper limit for the fire test as well as the time period over which the test will last.
