Craig and Derricott i-switch Switch Disconnectors (Isolators)

By Chris Dodds on 29th July, 2012

Follow @ThorneanDerrick

Craig & Derricott Switch Disconnectors

Craig & Derricott 'i-switch' Range



Switch Disconnectors (Isolators) provide the means to safely disconnect or isolate an item of electrical equipment from the power supply, primarily designed to provide a means of local isolation when an elecrical item may need maintenance or repair.

Switch Disconnectors also:

1. Provide an effective clearance between the supply and the electrical load appropriate to the voltage applied
2. Provide a means of "locking off" (padlocking)
3. Provide true indication of contact state
4. Provide a safe electrical disconnection from the power supply even under fault conditions

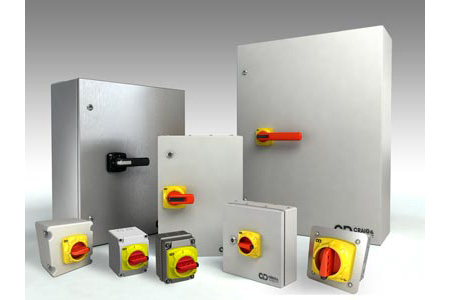

Pictured: Craig & Derricott i-switch Isolation Equipment

Craig & Derricott 'i-switch' Range

• Moulded Plastic Isolators & Switch Disconnectors IP65 20A-63A
• Mild Steel Isolators & Switch Disconnectors IP65 20A-63A
• Stainless Steel Isolators & Switch Disconnectors IP65 20A-63A
• Die Cast Isolators & Switch Disconnectors IP65 20A-63A
• Sheet Steel Isolators & Switch Disconnectors IP41 32A-630A
• Sheet Steel Isolators & Switch Disconnectors IP65 32A-1000A
• ATEX Zone 22 Isolators& Switch Disconnectors Cat 3D
• Fire Rated Isolators & Switch Disconnectors 20A-125A

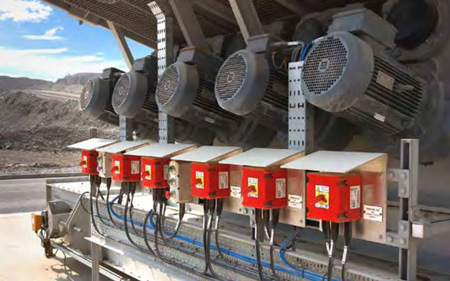

Pictured: Craig & Derricott i-switch Enclosed Switchgear

Zone 1 and Zone 2 isolators (switch disconnectors) are ATEX certified for hazardous area installation. Craig & Derricott range of ATEX certified Zone 1 and 2 isolators are housed in heavy duty cast enclosures for use in hazardous areas. Isolators are available with 16A, 25A, 40A, 63A, 80A, 100A, 125A, 160A, 200A, 250A current ratings for hazardous are electrical installations.
