Craig & Derricott DGC0164EBZ 'i-switch' ATEX  Zone 1 Zone 2 Switch Disconnectors

Craig & Derricott ATEX Zone 1 Zone 2 Switch Disconnectors

Craig & Derricott DGC0164EBZ 'i-switch' Isolators For Hazardous Areas



Craig & Derricott ATEX Isolators (Switch Disconnectors) housed in heavy duty cast iron and cast aluminium enclosures are ATEX certified for use in Cat II, Zone 1 & Zone 2 hazardous areas. Cast Iron 16A - 80A, Cast Aluminium 63A - 250A.

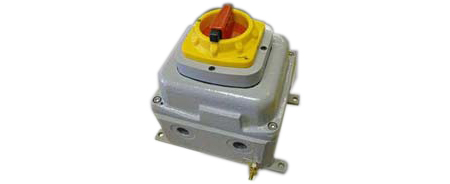

Pictured: Craig & Derricott DGC0164EBZ 'i-switch' Switch Disconnector

Craig & Derricott DGC0164EBZ 'i-switch' Isolators & Switch Disconnectors

Hazardous Area Certifications and ATEX Approvals

  • Certification Code Ex d II 2 GD IIB T4, T5 or T6
  • Certification No. ITS 09 ATEX 16433X, ITS 09 ATEX 16436U
  • Certification standard EN 60079-0, EN 60079-1, EN 61241-0 & EN 61241-1
  • Operating temperature -20oC to +40oC
  • Ingress Protection IP65



ATEX Isolators & Switch Disconnectors - Construction

High quality heavy duty cast enclosures are used throughout the hazardous area ATEX certified low voltage isolation range. Cast Iron 16A - 80A, Cast Aluminium 63A - 250A. All hazardous area cast enclosures are supplied pre-drilled with the entries as shown against each item. Entries can be fitted with reducers to suit smaller cables, but specific entry arrangements can be supplied.

All load switching interiors are supplied as either TP&N (switched neutral) or 6P and have AC23A ratings to BS EN 60947-3. Auxiliary contacts are available for applications such as SCADA packages. Operating handles are capable of accepting up to three padlocks in the 'Off' position. Finish - RAL 7035 Two pack grey epoxy coating over etching primer.



Craig & Derricott DGC0164EBZ1 Switch Disconnector Specifications

Current Rating

16A

Format - break aux

4 pole + 2 early

Enclosure ref

G21 (Cast Iron)

Supplied Entries

3 off M20
