Craig & Derricott DGC0404EBZ1 'i-switch' ATEX  Zone 1 Zone 2 Switch Disconnectors

Craig & Derricott ATEX Zone 1 Zone 2 Switch Disconnectors

Craig & Derricott DGC0404EBZ1 'i-switch' Isolators For Hazardous Areas



Craig & Derricott ATEX Isolators (Switch Disconnectors) housed in heavy duty cast iron and cast aluminium enclosures are ATEX certified for use in Cat II, Zone 1 & Zone 2 hazardous areas. Cast Iron 16A - 80A, Cast Aluminium 63A - 250A.

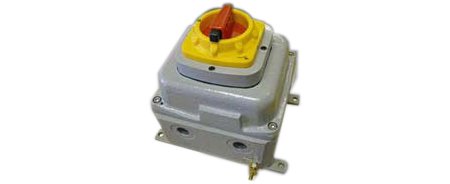

Pictured: Craig & Derricott DGC0404EBZ1 'i-switch' Switch Disconnector

Craig & Derricott DGC0404EBZ1 'i-switch' Isolators & Switch Disconnectors

Hazardous Area Certifications and ATEX Approvals

  • Certification Code Ex d II 2 GD IIB T4, T5 or T6
  • Certification No. ITS 09 ATEX 16433X, ITS 09 ATEX 16436U
  • Certification standard EN 60079-0, EN 60079-1, EN 61241-0 & EN 61241-1
  • Operating temperature -20oC to +40oC
  • Ingress Protection IP65



Craig & Derricott DGC0404EBZ1 Switch Disconnector Specifications

Current Rating

40A

Format - break aux

4 pole + 2 early

Enclosure ref

G21 (Cast Iron)

Supplied Entries - M20

 3 off M25 + 1 off
