Abtech SX Stainless Steel Hazardous Area Enclosures Chosen For Project In Australia

By Chris Dodds on 15th August, 2012

Follow @ThorneanDerrick

Hazardous Area Electrical Equipment

Abtech Hazardous Area Junction Boxes & Electrical Enclosures



T&D have supplied a range of industrial Abtech IP66 SX1.5 stainless steel enclosures for a project in Australia via Broderick Ltd.

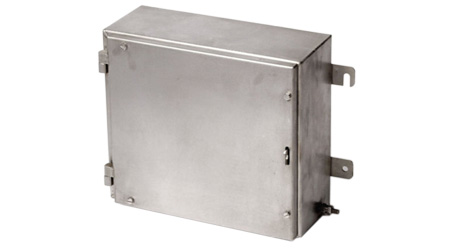

Pictured: Abtech SX1.5 Stainless Steel and Mild Steel Enclosures

Abtech SX stainless steel enclosures are made from stainless steel grade 316L. Orbital finish is standard. Electro-polishing is available as an alternative. The Abtech SX stainless steel enclosures are fabricated from 2mm (14 gauge) material for the enclosure carcass and lid and 3mm (10 gauge) material for cable gland plates.

Standard mounting is by means of four 3mm thick mounting straps welded to the back of the electrical enclosure. Slotted upper straps ease installation. Custom mounting facilities are available.

The SX range of enclosures are suitable for use in hazardous areas and were specifically designed to meet the rigours of the North Sea environment and is capable of achieving IP66 and IP67. Abtech SX1.5 enclosures have temperature ratings of  -50°C to +175°C in hazardous areas and -60°C to +200°C in non-hazardous areas plus a power rating of 32.284W.

Abtech SX stainless steel enclosures are available in a range of sizes and specific depths are manufactured on request. User friendly internal sliding terminal rails for ease of cabling. High voltage, high current and fault rated stainless steel versions are also available. ATEX certified versions available.

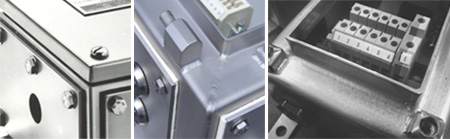

Abtech SX Enclosure Features

• Wide Operating Temperature (- 50°C to + 175°C) (-58°F to +347°F)
• Ingress Protection up to IP68
• Fire Resistant to IEC331
• Impact Resistant > 10 Nm
• Corrosion Resistant
• Gland plates can be fitted to any or all four sides (size SX66 and above)
• Certification for use in Zone 1 and 2
• UL, CSA, IEC Ex, ATEX, FM, InMetro
• and TR CU Approvals
• Ideal for Petrochemical and Marine applications



Abtech SX1.5 Stainless Steel & Mild Steel Enclosures Specifications

Part No.	Material	Width	Length	Depth	Weight
Abtech SX1.5.140	Stainless Steel	306mm	306mm	140mm	7300g
Abtech SX1.5.200	Stainless Steel	306mm	306mm	200mm	8800g
Abtech SX1.5.300	Stainless Steel	306mm	306mm	300mm	11300g
Abtech MSX1.5.140	Mild Steel	306mm	306mm	140mm	7300g
Abtech MSX1.5.200	Mild Steel	306mm	306mm	200mm	8800g
Abtech MSX1.5.300	Mild Steel	306mm	306mm	300mm	1130g



Broderick Projects Ltd are specialists in the design, manufacture and installation of Mechanical Drive Systems and supply Encoders, Resolvers, Tachos, Inverters, Motors, Controls, Turnkeys to the drives industry.



Video: Abtech SX Enclosures - Zones 1 & Zone 2 Atex Certified

• Further Reading:

Reducing Energy Consumption Of Hazardous Area Zone 1 Lighting Systems Using Abtech APC Photocells

Abtech High Voltage Stainless Steel Junction Boxes For Hazardous Area Oil & Gas Projects

Abtech Medium Voltage Terminal (ATEX) Simplifies Hazardous Area Zone 1 Electrical Connections
