 Abtech SX Stainless Steel Enclosures & Junction Boxes

LV Stainless Steel Junction Boxes & Enclosures

Hazardous Areas, Zones 1 & Zones 2 - ATEX Certified

Abtech SX Stainless Steel Electrical Enclosures ATEX & IECEx Rated





Abtech SX Range LV Electrical Enclosures Product Features

Abtech SX stainless steel electrical enclosures and junction boxes are ATEX certified and suitable for Zone 1 and Zone 2 hazardous areas.

Abtech SX hazardous area stainless steel enclosures and junction boxes are available in standard depths of 140, 200 or 300mm and can be fitted with removable cable gland plates and client approved terminals.

Abtech SX range of stainless steel enclosures and junction boxes were specifically designed to meet the rigors of the North Sea and are capable of achieving IP66, IP67 and IP68 ingress protection.

Abtech SX Range LV Electrical Enclosures Product Features

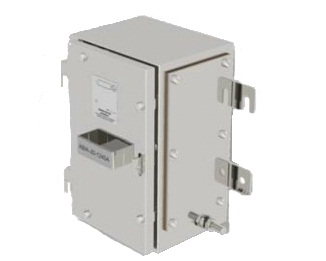

Electro Polished (External Sides Only On SX Range)

Electro Polished (External Sides Only)

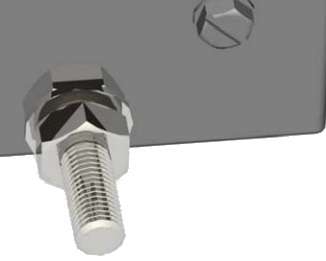

Earth Stud Fitted To Door And Gland Plates

Earth Stud Fitted To Door And Gland Plates

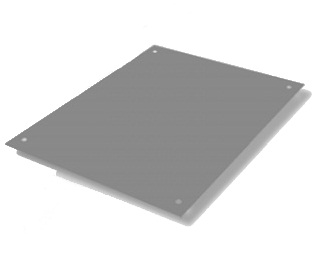

Component Mounting Plate

Component Mounting Plate

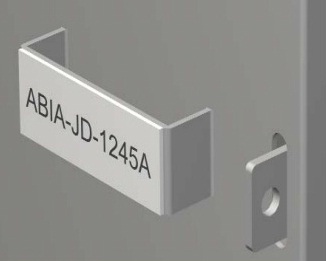

Label Bracket Welded To Door

Label Bracket Welded To Door

Internal Earthing Bar Can Be Fitted With Clamps

Internal Earthing Bar (Fitted With Clamps)

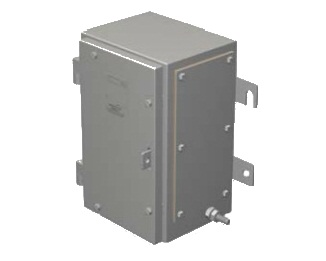

Full Width, Full Height Gland Plates

Full Width, Full Height Gland Plates

Abtech SX hazardous area electrical enclosures have passed the Shell/ERA deluge test, devised to test enclosures and electrical equipment that is routinely subjected to ships decks conditions or fire deluge systems for marine and offshore applications.

 Abtech SX Stainless Steel Enclosures & Junction Boxes

Abtech SX Stainless Steel Enclosures & Junction Boxes, Features

  • Wide operating temperature (-70 to +175 degrees Celsius)
  • Ingress protection to IP68 (submersible to 120ft)
  • Fire resistant to IEC331
  • Corrosion resistant
  • Hazardous area approved


Hazardous Area Certified Stainless Steel Enclosures & Junction Boxes

Abtech SX enclosures and junction boxes carry global hazardous area certifications - ATEX EEx'e' to BSEN50019 (Zone 1 & 2), EEX'nA' to BSEN50021 (Zone 2), NEMA 4X (CSA, UL & FM Class 1 Div 2) and GOST.

Fire Resistant Stainless Steel Enclosures & Junction Boxes

Abtech SX enclosures can be upgraded for fire resistance applications when fitted with ceramic terminals meeting the requirement of IEC331 (750 degrees Celsius for 3 hours) and BS6387/1983 (950 degrees Celsius for 3 hours).

Abtech SX Junction Boxes Selection Table

If in doubt, please contact T&D for specification support and selection advice about hazardous area junction boxes and enclosures.

Abtech Part Number Width (mm) Height (mm) Depth (mm)
SX45 114 114 51
SX64 102 152 63
SX66 152 152 102
SX0 152 229
SX0.5 184 274
SX1 234 324
SX1.5 306 306
SX2 372 324
SX3 372 448
SX4 372 510
SX5 510 510
SX6 510 780
SX7 650 950
SX8 800 1250
