Nexans Euromold 430TB Screened Separable Connectors 400 Series, up to 630A 33kV - Interface C

Nexans Euromold Connectors - Screened Separable Elbows & Tee Connectors

Nexans Euromold Interface Type C

 400 Series Bushings M16

400amps, 11-33kV

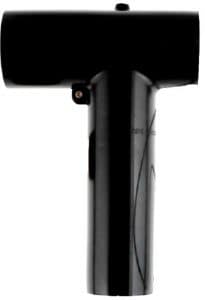

Nexans Euromold 430TB is a screened separable tee connector specified to terminate and connect medium/high voltage cables in the following voltage classes:

• 6/10 (12) kV
• 6.35/11 (12) kV
• 8.7/15 (17.5) kV
• 12/20 (24) kV
• 12.7/22 (24) kV
• 18/30 (36) kV
• 19/33 (36) kV

Nexans Euromold 400 series screened separable connectors are EPDM pre-moulded,high voltage cable terminations for 6.6kV, 11kV, 15kV, 24kV and 33kV electrical equipment including switchgear, transformers and motors.

Nexans Euromold 400 series separable connectors include Nexans Euromold elbow connectors, tee connectors, bushings (oil insulated) and surge arresters to protect electrical equipment up to 33kV.

Nexans Euromold Separable Elbow Connectors 400 Series

Euromold 400LB Elbow Connectors & 400TB 440TB Elbow Connectors

• Connector for terminating high voltage polymeric (XLPE EPR) cables, 11-33kV
• Plug in bolted tee connectors with current rating 630amps and 1250amps
• Conductive EPDM jacket provides a touch safe screened termination
• Suits copper wire and copper tape screened cable, 35-300sqmm
• Type C 630A interface to CENELEC EN50180



Nexans Euromold 430TB Specification

Euromold separable connector type	Voltage Um (kV)	Current Ir (A)	Current lr (A)	Conductor sizes (sqmm)
			When using a copper (-11-2) or a bolted (14-5) conductor contact	min	max
430TB/G	11kV 12kV	630 Amps	1250 Amps	35	300
K430TB/G	11kV 24kV	630 Amps	1250 Amps	35	300
M430TB/G	11kV 24kV 36kV	630 Amps	1250 Amps	50	300

T&D UK with the support of Nexans provide installation training and certification for experienced high voltage cable jointers up to 33kV.


High Voltage Equipment Bushings - Nexans Euromold Bushings
Nexans Euromold separable connectors for terminating high voltage power cables are designed to mate with an outer cone type bushing on switchgear, transformers or motors - each screened separable cable connector has unique dimensions and/or electrical contact pins/screws.

Type A Bushings - 200 Series Bushings 7.9mm Plug In Pin, Voltage Range 12-24kV, Current Rating 250 Amps Copper Pin:

Use Nexans Euromold 158LR Plug In Separable Connector

Type B Bushings - 400 Series Bushings 14mm Plug In Pin, Voltage Range 12-36kV, Current Rating 400 Amps Copper Pin:

Use Nexans Euromold 400LR Plug In Separable Connector

Type C Bushings - 400 Series Bushings M16 Bolted, Voltage Range 12-36kV, Current Rating 630 Amps Copper Stud:

Use Nexans Euromold 400TB Plug In Separable Connector

Type C Bushings - 400 Series Bushings M16 Bolted, Voltage Range 12-36kV, Current Rating 1250 Amps Copper Stud:

Use Nexans Euromold 440TB Plug In Separable Connector

Type D Bushings - 600 Series Bushings 5/8" Bolted, Voltage Range 12-24kV, Current Rating 800 Amps Aluminium Stud:

Use Elastimold 650LR Plug In Separable Connector

Type D Bushings - 600 Series Bushings 5/8" Bolted, Voltage Range 12-24kV, Current Rating 1250 Amps Aluminium Stud:

Use Elastimold 675LR Plug In Separable Connector

Type E Bushings - 700 Series Bushings 5/8" Bolted, Voltage Range 12-36kV, Current Rating 800 Amps Aluminium Stud

Use Elastimold 750LR Plug In Separable Connector

Type E Bushings - 700 Series Bushings 5/8" Bolted, Voltage Range 12-36kV, Current Rating 1250 Amps Aluminium Stud:

Use Elastimold 775LR Plug In Separable Connector


T&D distribute the complete range of Nexans Euromold and Elastimold HV cable bushings, screened separable connectors, cable joints and cable terminations in both heat shrink and cold shrink for high voltage systems.

Nexans Euromold 400TB Elbow Connector Interface Type C Design

Nexans Euromold Separable Connector Comprising:

1. Conductive EPDM insert

2. Conductive EPDM jacket

3. Insulating EPDM layer

4. Type C - 630 A interface as described by CENELEC EN 5080 and 508.

5. Conductor connector

6. Basic insulating plug (with VD point)

7. Cable reducer

8. Conductive rubber cap

9. Clamping screw

10. Earthing lead

The screen break design enables cable outer sheath testing without removing or dismantling the connector.



Video : Nexans Euromold 430TB High Voltage Tee Connectors

Nexans Euromold 430TB Screened Separable Connectors 400 Series, up to 630A 33kV - Interface C

Nexans Euromold Screened Separable Connectors - Technical Catalogue
