M440TB Nexans Euromold 1250A 33kV Bolted Tee Connectors 70-630sqmm

Nexans Euromold Connectors

400 Series Interface C

Tee Connectors





Nexans Euromold M440TB Bolted Tee Connectors

• Voltage 33kV 36kV
• Current (lr) 630 Amps
• Conductors 70-360sqmm
• Suit Cable Type: Polymeric
• Number Of Cable Cores: Single Core or 3 Core
• Termination Type: Tee Connector

Application : Nexans M440TB connectors are used to connect high voltage cable to transformers, switchgear, motors and electrical equipment.

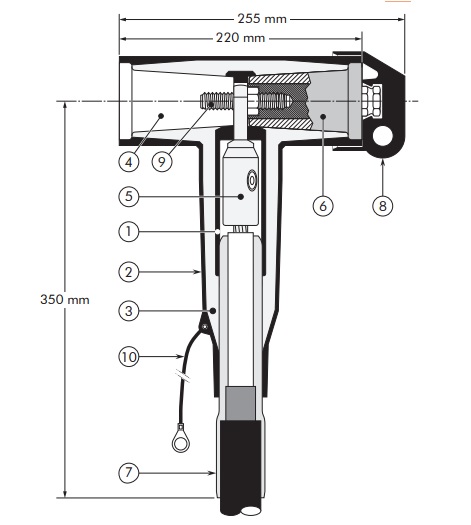

Nexans Euromold M440TB Bolted Tee Connector - Specification Design

Euromold separable connector comprising:

1. Conductive EPDM insert

2. Conductive EPDM jacket

3. Insulating EPDM layer

4. Type C - 630 A interface as described by CENELEC EN 50180 and 50181

5. Conductor connector

6. Basic insulating plug (with VD point)

7. Cable reducer

8. Conductive rubber cap

9. Clamping screw

10. Earthing lead.

The screen break design enables cable outer sheath testing without removing or dismantling the connector.
