400TB Nexans Euromold 630A 11kV Bolted Tee Connectors 35-300sqmm

Nexans Euromold Connectors

400 Series Interface C

Tee Connectors



Nexans Euromold 400TB is a screened separable tee connector specified to terminate and connect medium/high voltage cables in the following voltage classes:

6/10 (12kV)
6.35/11 (12kV)
8.7/15 (17.5kV)
12/20 (24kV)
12.7/22 (24kV)
18/30 (36) kV
19/33 (36) kV
20.8/36 (42) kV

Nexans Euromold 400TB Bolted Tee Connectors

• Voltage 11kV 12kV
• Current (lr) 630 Amps
• Conductors 35-300sqmm

Application : Nexans M400TB connectors are used to connect high voltage cable to transformers, switchgear, motors and electrical equipment.



Nexans Euromold 400TB Bolted Tee Connector - Specification Design

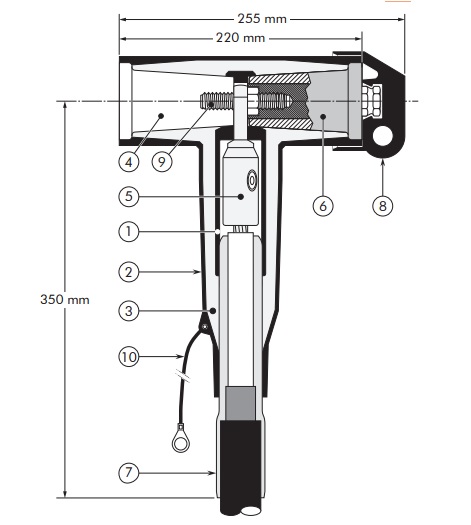

Euromold separable connector comprising:

1. Conductive EPDM insert

2. Conductive EPDM jacket. 3. Insulating EPDM layer

4. Type C - 630 A interface as described by CENELEC EN 50180 and 50181

5. Conductor connector

6. Basic insulating plug (with VD point).

7. Cable reducer

8. Conductive rubber cap

9. Clamping screw

10. Earthing lead.

The screen break design enables cable outer sheath testing without removing or dismantling the connector.



Nexans Euromold 400TB Specification

Euromold separable connector type	Voltage Um (kV)	Current Ir (A)	Current Ir (A) When using a copper (-11-2) or a bolted (-14-5) conductor contact	Conductor sizes (sqmm)
				min	max
400TB/G	11kV	630 Amps	800 Amps	35	300
K400TB/G	24kV	630 Amps	800 Amps	35	300
M400TB/G	36kV	630 Amps	800 Amps	35	240
P400TB/G	42kV	630 Amps	800 Amps	350	240



Euromold 400TB Part Number	Dia. over core insulation (mm)
	min	max
400TB/G-11-X	12.0	17.5
400TB/G-15-X	16.0	22.0
400TB/G-19-X	20.0	26.5
400TB/G-22-X	23.5	31.0
400TB/G-25-X	26.5	32.5
400TB/G-27-X	28.5	37.5



Conductor sizes (sqmm)	Aluminium Conductor		Aluminium & Copper Conductor	Copper Conductor
	DIN Hexagonal Crimp	Deep Indent Crimp	Bolted	DIN Hexagonal Crimp
35sqmm	35(K)M-10-2	35KM-12-1	16.95-14-5	35(K)M-11-2
50sqmm	50(K)M-10-2	50(K)M-12-1	16.95-14-5	50(K)M-11-2
70sqmm	70(K)M-10-2	70(K)M-12-1	16.95-14-5, 50.150-14-5	70(K)M-11-2
95sqmm	95(K)M-10-2	95(K)M-12-1	16.95-14-5, 50.150-14-5, 95.240-1-4-5	95(K)M-11-2
120sqmm	120(K)M-10-2	120(K)M-12-1	50.150-14-5, 95.240-1-4-5. 120.300-1-4-5	120(K)M-11-2
150sqmm	150(K)M-10-2	150(K)M-12-1	50.150-14-5, 95.240-1-4-5, 120.300-1-4-5	150(K)M-11-2
185sqmm	185(K)M-10-2	185(K)M-12-1	95.240-1-4-5, 120.300-1-4-5	185(K)M-11-2
240sqmm	240(K)M-10-2	240(K)M-12-1	95.240-1-4-5, 120.300-1-4-5	240(K)M-11-2
300sqmm	300(K)M-10-2	300(K)M-12-1	120.300-1-4-5	300(K)M-11-2
