Nexans Euromold 440TB is a screened separable tee connector specified to terminate and connect medium/high voltage cables in the following voltage classes:

• 6/10 (12kV)
• 6.35/11 (12kV)
• 8.7/15 (17.5kV)
• 12/20 (24kV)
• 12.7/22 (24kV)
• 18/30 (36) kV
• 19/33 (36) kV
• 20.8/36 (42) kV

Nexans Euromold 440TB Bolted Tee Connectors

• Voltage 11kV 12kV
• Current (lr) 630 Amps
• Conductors 240-800sqmm

Application : Nexans 440TB connectors are used to connect high voltage cable to transformers, switchgear, motors and electrical equipment.



Nexans Euromold 440TB Bolted Tee Connector - Specification Design

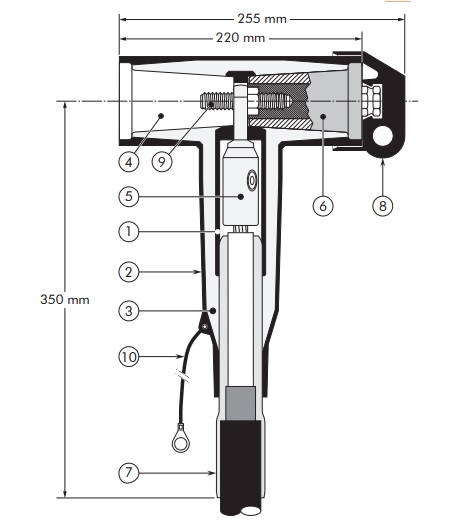

Euromold separable connector comprising:

1. Conductive EPDM insert

2. Conductive EPDM jacket

3. Insulating EPDM layer

4. Type C - 630 A interface as described by CENELEC EN 50180 and 50181

5. Conductor connector

6. Basic insulating plug (with VD point)

7. Cable reducer

8. Conductive rubber cap

9. Clamping screw

10. Earthing lead.

The screen break design enables cable outer sheath testing without removing or dismantling the connector.



Euromold 1250A 11kV Bolted Tee Connectors 240-800sqmm - 440TB
