Nexans Euromold 400LR Plug In Elbow Connectors 11kV 400Amp 50-240sqmm

Nexans EuromoldNexans Euromold 400LR Elbow Connector

 11kV 400Amp Separable Connectors 50sqmm - 240sqmm





Nexans Euromold 400LR is a screened separable elbow connector specified to terminate and connect medium/high voltage cables onto Interface B bushings in the following voltage classes:

  • 6/10 (12kV)
  • 6.35/11 (12kV)
  • 8.7/15 (17.5kV)
  • 12/20 (24kV)
  • 12.7/22 (24kV)
  • 18/30 (36kV)
  • 19/33 (36kV)

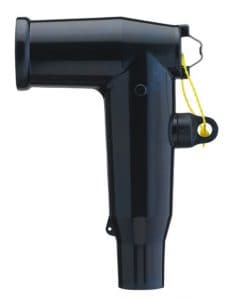

Euromold 400LR

Nexans Euromold 400LR Plug In Elbow Connector

  • Voltage 11kV
  • Current (Ir) 400 Amp
  • Conductors 50-240sqmm

Application : Nexans Euromold 400LR separable elbow connector (plug-in type) designed to connect polymeric insulated cable to equipment (transformers, switchgear, motors...).

Nexans Euromold 400LR Plug In Elbow Connectors 11kV 400Amp 50-240sqmm

Nexans Euromold 400LR Plug In Elbow Connectors 11kV 400Amp 50-240sqmm

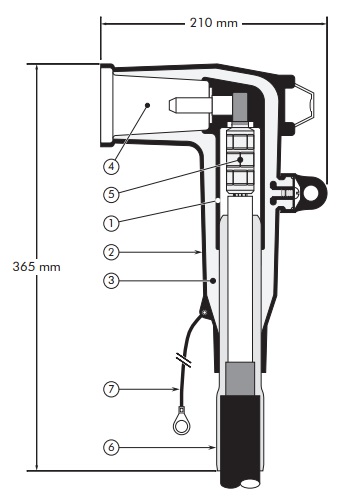

HV Elbows - Nexans Euromold Screened Separable Connector Design

1. Conductive EPDM insert
2. Conductive EPDM jacket
3. Insulating EPDM layer moulded between the insert and the jacket
4. Type B - 400 A interface as described by CENELEC EN 50180 and 50181
5. Conductor connector
6. Cable reducer
7. Earthing lead

T&D UK with the support of Nexans provide installation training and certification for experienced high voltage cable jointers up to 33kV.



Nexans Euromold 400LR Specification
Euromold separable connector type Voltage Um (kV) Current Ir (A) Conductor sizes (sqmm)
min max
400LR/G 12kV 400 Amps 50 240
K400LR/G 24kV 400 Amps 25 240
M400LR/G 36kV 400 Amps 35 185



Euromold 400LR Part Number Dia. over core insulation (mm)
min max
400LR/G-11-X 12.0 17.5
400LR/G-15-X 16.0 22.0
400LR/G-19-X 20.0 26.5
400LR/G-22-X 23.5 31.0
400LR/G-25-X 26.5 32.5
400LR/G-27-X 28.5 37.5



Conductor sizes (sqmm) Aluminium Cable Aluminium and copper conductor Copper Cable
DIN Hexagonal Crimp Deep Indent Crimp DIN Hexagonal Crimp
25sqmm - - 25.95-14-5 25(K)M-11-2
35sqmm 35(K)M-12-2 35KM-12-1 35(K)M-11-2
50sqmm 50(K)M-12-2 50(K)M-12-1 50(K)M-11-2
70sqmm 70(K)M-12-2 70(K)M-12-1 70(K)M-11-2
95sqmm 95(K)M-12-2 95(K)M-12-1 95(K)M-11-2
120sqmm 120(K)M-12-2 120(K)M-12-1 95.240-14-5 120(K)M-11-2
150sqmm 150(K)M-12-2 150(K)M-12-1 150(K)M-11-2
185sqmm 185(K)M-12-2 185(K)M-12-1 185(K)M-11-2
240sqmm 240(K)M-12-2 240(K)M-12-1 240(K)M-11-2




High Voltage Equipment Bushings - Nexans Euromold Bushings
Nexans Euromold separable connectors for terminating high voltage power cables are designed to mate with an outer cone type bushing on switchgear, transformers or motors - each screened separable cable connector has unique dimensions and/or electrical contact pins/screws.

Type A Bushings - 200 Series Bushings 7.9mm Plug In Pin, Voltage Range 12-24kV, Current Rating 250 Amps Copper Pin:

Use Nexans Euromold 158LR Plug In Separable Connector

Type B Bushings - 400 Series Bushings 14mm Plug In Pin, Voltage Range 12-36kV, Current Rating 400 Amps Copper Pin:

Use Nexans Euromold 400LR Plug In Separable Connector

Type C Bushings - 400 Series Bushings M16 Bolted, Voltage Range 12-36kV, Current Rating 630 Amps Copper Stud:

Use Nexans Euromold 400TB Plug In Separable Connector

Type C Bushings - 400 Series Bushings M16 Bolted, Voltage Range 12-36kV, Current Rating 1250 Amps Copper Stud:

Use Nexans Euromold 440TB Plug In Separable Connector

Type D Bushings - 600 Series Bushings 5/8" Bolted, Voltage Range 12-24kV, Current Rating 800 Amps Aluminium Stud:

Use Elastimold 650LR Plug In Separable Connector

Type D Bushings - 600 Series Bushings 5/8" Bolted, Voltage Range 12-24kV, Current Rating 1250 Amps Aluminium Stud:

Use Elastimold 675LR Plug In Separable Connector

Type E Bushings - 700 Series Bushings 5/8" Bolted, Voltage Range 12-36kV, Current Rating 800 Amps Aluminium Stud:

Use Elastimold 750LR Plug In Separable Connector

Type E Bushings - 700 Series Bushings 5/8" Bolted, Voltage Range 12-36kV, Current Rating 1250 Amps Aluminium Stud:

Use Elastimold 775LR Plug In Separable Connector
