Hadar HDL100 & HDL220 Hazardous Area Fluorescent Lighting Installed At Knockdhu Distillery

By Chris Dodds on 28th August, 2012

Follow @ThorneanDerrick

Hadar Lighting.

Zone 1 & Zone 2 Hazardous Area Lighting

Hadar HDL100 Zone 1 Ex emb Fluorescent Luminaire



Inverhouse Distillers' Knockdhu Distillery near Huntly in Aberdeenshire first opened in 1894 to produce their world famous anCnoc' whisky with traditional skills and techniques. Over the years the distillery has developed an uncompromising approach to safe working practices and recently invested in improvements to hazardous area Zone 1 and Zone 2 lighting on site.

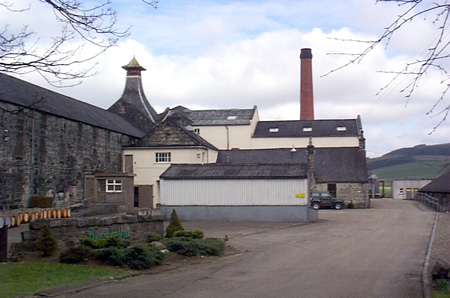

Pictured: Knockdhu AnCnoc Distillery, Aberdeenshire

Gordon Bruce, General Manager of the distillery, commented, "Following a hazardous area lighting audit we identified two seperate parts of the facility where we needed enhanced lighting certified for hazardous areas - the main storage warehouse where Zone 2 lighting was required and which can get very cold and the distillation area which required Zone 1 lighting.

Hadar HDL220 hazardous area luminaires were installed in the storage warehouse. Hadar HDL220 are made from corrosion resistant glass reinforced polyester and high impact polycarbonate, with stainless steel fittings which have the advantage of being able to be left periods of time in cold environments without any deterioration in the hazardous area light fitting."

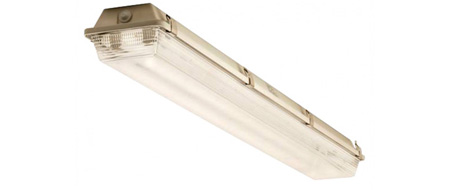

Pictured: Hadar HDL220 Zone 2 Standard / Emergency Fluorescent Lighting - IP65

Hadar HDL 220 EEx nA Standard Fluorescent Luminaire Features

• Designed from a high specification of corrosion resistant glass, reinforced polyester body and high impact polycarbonate diffuser to give the highest protection to ATEX standards for EEx nA applications
• Hadar HDL 220 luminaire features stainless steel diffuser retaining clips and zinc steel gear tray for rapid installation and easy maintenance
• Available in single and twin fittings - 18W, 36W and 58W
• High specification
• Sira certified
• High Frequency Electronic Ballast
• High Impact GRP Base
• High Impact Polycarbonate Diffuser
• Loop In / Loop Out as standard
• Through wired versions available



Hadar HDL220 Zone 2 EEx Fluorescent Luminaire Electrical Specifications

Lamp Options	Power Consumption	Power Factor	Power Supply
1 x 18W (600mm Luminaire)	20W	Better Than 0.95	220V - 240V, 50/60Hz AC/DC Emergency Version AC Only
1 x 36W (1200mm Luminaire)	38W
1 x 58W (1500mm Luminaire)	60W
2 x 18W (600mm Luminaire)	39W (Emergency - 49W)
2 x 36W (1200mm Luminaire)	73W (Emergency - 83W)
2 x 58W (1500mm Luminaire)	113W (Emergency - 132W)



"The Zone 1 distillation area has a very high roof due to the height of the stills which required hazardous area lighting fitted in a variety of different aspects from wall mounted brackets to overhead chain mounting. Hadar HDL100 zone 1 fluorescent luminaire was specified for this hazardous area lighting application. Hadar HDL100 modular construction and built-in unitstrut channel meant that it was easy to fit in a variety of ways without any special skills or equipment and the self contained lamp envelope enables quick and easy cleaning and lamp changes to be achieved with the minimum fuss or disruption to the distillation process.

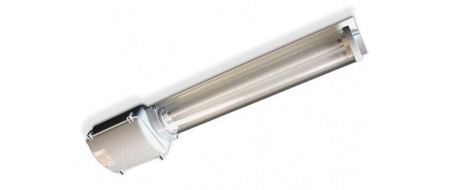

Pictured: Hadar HDL100 Zone 1 Fluorescent Luminaire - IP66/67

Hadar HDL100 Ex emb Fluorescent Luminaire Features

• Simple Installation
• Straightforward one tool maintenance (5mm Allen Key)
• Emergency version available - 3 hour duration
• Rugged construction
• Hadar HDL100 is easily relamped with detachable lamp envelope
• Mains isolation not required when relamping
• Short gaskets for proven ingress protection
• Features a reflector compatible with Unistrut channel support systems and accessories
• Pole mount option available
• Continuous monitoring of fluorescent lamps ensures safe end of life shutdown by electronic ballast in accordance with HSE safety notice 8/05
• Overvoltage protection 320V for 1 minute
• High frequency electronic control gear for instant operation at lower temperatures



Hadar HDL100 Zone 1 Ex emb Fluorescent Luminaire Electrical Specifications

Lamp Options	Power Consumption	Power Factor	Power Supply
2 x 18W Standard	32W circuit watts at 240V - 0.14A (120V - 0.32A)	Better Than 0.95	220V - 254V, 50/60Hz AC/DC 110V - 130V, 50/60Hz AC/DC (2x 18W / 2 x 36Wonly)  Emergency Version as above AC Only
2 x 18W Emergency	36W circuit watts at 240V - 0.16A (120V - 0.32A)
2 x 36W Standard	62W circuit watts at 240V - 0.27A (120V - 0.54A)
2 x 36W Emergency	68W circuit watts at 240V - 0.30A (120V - 0.60A)
2 x 58W Standard	92W circuit watts at 240V - 0.40A
2 x 58W Emergency	96W circuit watts at 240V - 0.42A
