Hadar Wellglass HDL113 & HDL 114 Zone 1 Zone 21 Ex de Hazardous Area Lighting

By Chris Dodds on 24th August, 2012

Follow @ThorneanDerrick

Hadar Hazardous Area Lighting

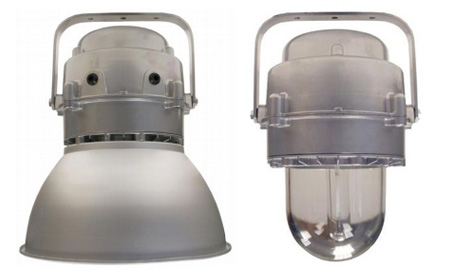

Hadar HDL114 HDL 113 Wellglass Zone 1 & Zone 21 Ex de



Hadar HDL Wellglass Hazardous Area Lighting range can accept a variety of voltages and lamp options. The HDL Wellglass lighting is available in size small (HDL113) and large (HDL114).

Hadar Wellglass hazarous area lighting is made from marine grade aluminium, toughened glass and have stainless steel external fittingd. HDL 113 and HDL 114 lights also have an aluminium external reflector and a T rating of T3/T4.

Hadar Wellglass Zone 1 & Zone 21 Ex Lighting Features

• Simple installation
• Straight forward maintenance
• Integral control gear
• Exe terminal chamber
• Internal flamepaths eliminating risk of corrosion and costly damage.
• Control gear and associated components housed in separate easily removed assembly
• The unique innovative design allows luminaires to be easily converted from Zone 1 to Zone 2
• Suitable for use with elliptical or tubular lamps
• Optional external reflector - ideal for warehousing



Hadar HDL Wellglass Hazardous Area Lighting Electrical Specifications

Lamp Options	Lamp Holder	Power Factor	Power Consumption	Ambient
50W MBF	E27	0.85	55W	55°C
80W MBF	E27	0.85	90W	55°C
125W MBF	E27	0.85	140W	55°C
250W MBF	E40	0.85	280W	45°C
400W MBF	E40	0.85	440W	45°C
50W SON	E27	0.85	55W	55°C
70W SON	E27	0.85	80W	55°C
150W SON	E40	0.85	170W	55°C
250W SON	E40	0.85	275W	45°C
400W SON	E40	0.85	440W	45°C
70W MBI	E27	0.85	80W	55°C
100W MBI	E27	0.85	115W	55°C
150W MBI	E27	0.85	170W	55°C
250W MBI	E40	0.85	280W	45°C
400W MBI	E40	0.85	440W	45°C
500W (Max) gls *	E40	0.85	500W	45°C
