Hadar HDL106 Hazardous Area LED Floodlights Installed Onboard Saipem Castoro II Vessel

By Chris Dodds on 19th July, 2012

Follow us on LinkedIn

Hadar HDL106 Hazardous Area LED Floodlights Installed Onboard Saipem Castoro II Vessel

Hazardous Area Lighting

Hadar HDL106 LED Floodlights for Hazardous Areas

LED Hazardous Area Floodlights



T&D Exports recently awarded Approved Vendor Status to ENI via their Italian agent have landed a new £50K Purchase Order. T&D have scored with Hadar Hazardous Area LED Flood Lights and Heli-Deck Lighting to ENI Snamprogetti Saudi Arabia.

Hadar HDL106 hazardous area floodlights were installed onboard Saipem CASTORO 2 vessel

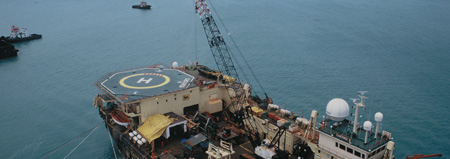

Pictured: Saipem Castoro II Vessel

Saipem Castoro II Vessel

Key Features : Hadar HDL106 LED Floodlights for Hazardous Areas

  • Modular construction allows the modules to be supplied interlinked with each other to provide greater light output
  • Can be used as a single unit – small floodlight or bulkhead or linked together to replicate a large 250W/400W floodlight
  • Each module utilises 48 off 1.2W LED’s
  • Integrated power supply
  • Low power consumption
  • Rugged construction – resistant to vibration
  • Independently photometrically tested
  • All units supplied with 2 cable entries
  • Floodlights are IP66 and IP67
  • Optional wired guard available for extra protection
  • Infra red variants available (for use with security cameras)
  • Wide, medium and narrow beam floodlight output available
  • Multiple mounting options available
  • Emergency variant floodlight available soon
  • Optional PE photocell available

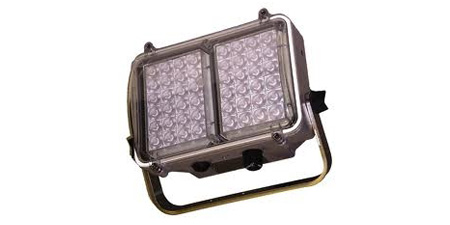

Pictured: Hadar HDL106 Hazardous Area LED Floodlight

Hadar HDL106 Hazardous Area LED Floodlight


Hadar HDL106 Floodlight Specifications
Main Body Marine Grade Aluminium
Diffuser Polycarbonate
Gaskets Silicone
External Fasteners A4 Stainless Steel
Stirrup Bracket 316 Stainless Steel
T Rating T4
Surface Temperature 103°C
Weight 6.0kg per module
Modular LED Luminaire
Zone 1 Ex emb LED Modular Floodlight / Bulkhead Luminaire


LED Floodlights Zone 1 Hazardous AreaSome More Hadar Lighting Benefits

  • One man installation
  • LED floodlight technology will give a predicted lamp life of 10 years+
  • No light pollution
  • Instant start and restrike
  • No light degradation at low temperatures
  • Penetrating white light
  • Photocell option available

T&D are Hadar Lighting Specialist Distributors
