Tyco Cable Joint - 1 PILCSTA x 5 Core Mains Service Breech (+Single Phase Split Concentric Service)

By Chris Dodds on 21st April, 2017

Follow us on LinkedIn

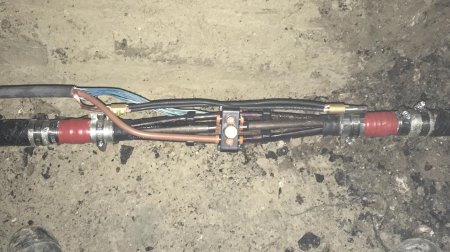

Pictured: Tyco Cable Joint - 1 PILCSTA x 5 Core Mains Service Breech (+Single Phase Split Concentric Service)

Tyco

Image: Grant Butler - 33/11kV HV and LV Cable Faults Jointer at SSE Thames Valley Region.

The Tyco cable joint utilises mechanical shearbolt connectors rather than sweated ferruel joint connections.

Tyco Cable Joint - 1 PILCSTA x 5 Core Mains Service Breech (+Single Phase Split Concentric Service)
