132kV Cable Stripping, Cable Preparation & Cable Jointing Tools

By Chris Dodds on 17th July, 2015

Follow @ThorneanDerrick

Cable Jointing Tools LV-HV

Cable Stripping, Cable Preparation & Cable Jointing Tools -132kV



T&D stock a complete range of 132kV cable tools to enable the stripping and preparation of high voltage power cables prior to cable jointing.

T&D also stock cable tools to enable the removal of bonded semi-conductor screening, lead alloy sheaths, fibre optic cable cores, XLPE insulation, galvanised steel wire armours and PE cable oversheaths.

T&D distribute Alroc, Ripley and Boddingtons Cable Tools for cable stripping and preparation of high voltage power cables.

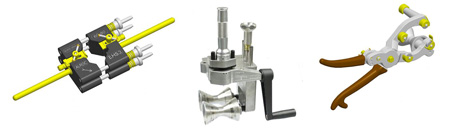

Alroc High Voltage Cable Preparation Tools

Alroc have a wide range of high voltage cable preparation splicing and stripping tools, including tools for the following:

• Semiconductive layer scraping
• Outer sheath/jacket stripping
• Cable screen stripping
• Cable screen grounding
• Semiconductor shaving tool (vulcanized)
• Primary insulation stripping
• Groove insulation making
• Beveling and chamfering cable insulation

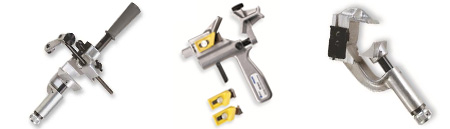

Ripley Utility Tool Cable Preparation Tools

Ripley Utility Tools are cable preparation tools used to cable splice, cable joint and cable terminate low voltage (LV), high voltage (HV) and extra high voltage (EHV) power, transmission and distribution cables.

Ripley cable preparation and cable jointing tools are suitable for both underground cable and overhead line applications - this includes 3.3kV, 11kV, 33kV, 66kV, 132kV and 400kV cable preparation.

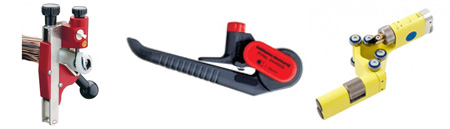

Boddingtons Cable Jointers Tools

Boddington tools are preferred by LV and HV jointers for working upon and preparing cables prior to jointing or terminating.

Boddingtons LV-HV cable jointing and cable preparation tools are are available for use on LV-HV cables (XLPE, PILC, EPR insulated), waveform, consac and utility power cables up to 33kV.

Low voltage cable jointing tools for cable stripping and cable preparation of DNO utility and industrial power cables including waveform, consac, XLPE and PILC. High voltage cable jointing tools enable the cable preparation, stripping, cutting and removal of insulation (XLPE, EPR), semi-conductive screens (bonded and peelable) and outer cable sheaths (PVC, PE, EPR) from single and multi-core 11-33kV cables, including Triplex cable.

T&D also stock and distribute Cembre Cable Crimping & Cable Cutting Tools and SEB Cable Pulling and Laying Equipment including cable rollers, cable socks, drum jacks and conduit rods.

\

Video Playlist : LV HV EHV Cable Jointing Tools

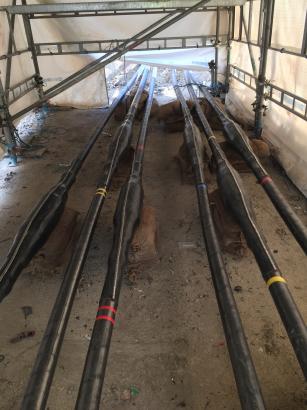

Pictured: 132kV Tyco Cable Joint EHV. Installed by EHV Cable Jointer : Hayden Smith (HJS Cable Jointing Ltd)
